Details
- Condition
Pre-Owned Clear Title - Engine
4.8L 8 Cylinder - Drivetrain
Rear Wheel Drive - Interior
Gray - VIN #
1GB0G2CA7E1119648 - Mileage
324138 - Transmission
Automatic - Exterior Color
White - Stock #
JYC-119648 - Warranty
As-Is
(BOX) DIMENSIONS; Length 12ft Rear box door dimension; Height 6FEET Width 5 FEET 10 INCHES
Luxury Features
- Air Conditioning
- Digital Information Center
- Tire Pressure Monitor
Power Equipment
- 12v Power Outlet
- Power Steering
Safety Features
- Anti-Lock Brakes
- Daytime Running Lights
- Driver's Air Bag
- Intermittent Wipers
- Passenger Air Bag
- Rear Defogger
Audio / Video
- Factory System
Interior & Exterior
- Center Arm Rest
- Cup Holders
- Tachometer
Condition Report
- No Known Accidents
- No Known Bodywork
Standard Specs
MECHANICAL
- Suspension, front independent with coil springs and stabilizer bar
- Suspension, rear hypoid drive axle with multi-leaf springs
- Steering, power
- Brakes, 4-wheel antilock, 4-wheel disc
- Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
- Exhaust, aluminized stainless-steel muffler and tailpipe

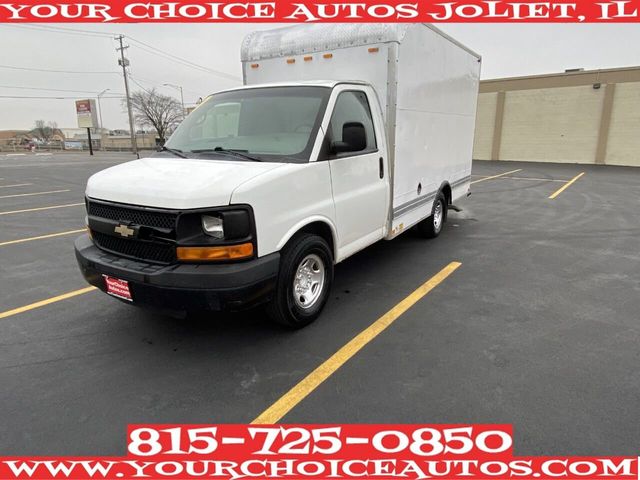

- Vehicle Name : Chevrolet Express Commercial Cutaway
- Body Style : 139.0" WB
- Body Code : ZW9
- Drivetrain : Rear Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 4300
- Gross Axle Wt Rating - Rear (lbs) : 6084
- Curb Weight - Front (lbs) : 2993
- Curb Weight - Rear (lbs) : 1503
- Gross Vehicle Weight Rating Cap (lbs) : 9900
- Engine Order Code : L20
- Engine Type : Gas V8
- Displacement : 4.8L/293
- Fuel System : Electronic Fuel Injection
- SAE Net Horsepower @ RPM : 285 @ 5400
- SAE Net Torque @ RPM : 295 @ 4600
- Trans Order Code : MYD
- Trans Type : 6
- Trans Description Cont. : Automatic
- First Gear Ratio (:1) : 4.03
- Second Gear Ratio (:1) : 2.36
- Third Gear Ratio (:1) : 1.53
- Fourth Gear Ratio (:1) : 1.15
- Fifth Gear Ratio (:1) : 0.85
- Sixth Gear Ratio (:1) : 0.67
- Reverse Ratio (:1) : 3.06
- Cold Cranking Amps @ 0° F (Primary) : 600
- Maximum Alternator Capacity (amps) : 145
- Engine Oil Cooler : Yes
- Frame Type : Ladder-Type
- Suspension Type - Front : Indep Coil Spring
- Suspension Type - Rear : Multi-leaf
- Spring Capacity - Front (lbs) : 4300
- Spring Capacity - Rear (lbs) : 6084
- Axle Type - Front : Independent
- Axle Type - Rear : Full-Floating
- Axle Capacity - Front (lbs) : 4300
- Axle Capacity - Rear (lbs) : 6084
- Axle Ratio (:1) - Rear : 3.42
- Shock Absorber Diameter - Front (mm) : 35.0
- Shock Absorber Diameter - Rear (mm) : 35.0
- Stabilizer Bar Diameter - Front (in) : 1.38
- Steering Type : Pwr
- Steering Ratio (:1), On Center : 17.2
- Turning Diameter - Curb to Curb (ft) : 43.4
- Turning Diameter - Wall to Wall (ft) : N/A
- Brake Type : Pwr
- Brake ABS System : 4-Wheel
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 12.8 x 1.5
- Rear Brake Rotor Diam x Thickness (in) : 13.0 x 1.1
EXTERIOR
- Wheels 16" x 6.5" (40.6 cm x 16.5 cm) steel (Only available with (R04) single rear wheel configuration.)
- Tires, front LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
- Tires, rear LT245/75R16E all-season, blackwall (Included and only available with CG33503 or CG33803 and (C4M) 9900 lbs. (4490 kg.) GVWR or (JFF) 10,100 lbs. (4581 kg.) GVWR. Jack and spare tire equipment bracket are not included.)
- Wheel configuration, rear, single (Standard on CG33503 model. Available on CG33803 model. Not available with (9N2) 10,050 lbs. (4559 kg.) or (C7N) 12,300 lbs. (5579 kg.) GVWR.)
- Bumper, front painted Black with step-pad (Deleted when (ZR7) Appearance Package or (YF1) RV Package is ordered.)
- Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
- Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
- Front Tire Order Code : XLP
- Rear Tire Order Code : YLP
- Front Tire Size : LT245/75R16E
- Rear Tire Size : LT245/75R16E
- Front Tire Capacity (lbs) : 2205
- Rear Tire Capacity (lbs) : 3042
- Revolutions/Mile @ 45 mph - Front : N/A
- Revolutions/Mile @ 45 mph - Rear : N/A
- Front Wheel Size (in) : 16 x 6.5
- Rear Wheel Size (in) : 16 x 6.5
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Wheelbase (in) : 139.00
- Length, Overall w/o rear bumper (in) : 246.70
- Width, Max w/o mirrors (in) : 79.10
- Height, Overall (in) : 82.90
- Overhang, Front (in) : 39.70
- Front Bumper to Back of Cab (in) : 98.70
INTERIOR
- Driver Information Center includes fuel range, average speed, oil life, fuel used, ice warning, engine hours, average fuel economy, tachometer and maintenance reminders.
- Warning tones, headlamp on and key-in-ignition
- Oil life monitor
- Theft-deterrent system, vehicle, PASS-Key III
- Heater and defogger with front and side window defoggers
- Defogger, side windows
- Headliner, cloth, over driver and passenger
- Visors, driver and front passenger, cloth, padded
- Assist handle, front passenger
- Lighting, interior with dome light and door handle-activated switches
- Passenger Capacity : 2
- Total Cooling System Capacity (qts) : 13.4
- Front Head Room (in) : 40.20
- Front Leg Room (in) : 41.30
- Front Shoulder Room (in) : 68.80
- Front Hip Room (in) : 65.50
SAFETY
- Daytime running lamps
- Brake/transmission shift interlock for automatic transmissions
- Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
- Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels. Not available with CG33803 models or CG33903 models.)
EPA Fuel Economy & Specification
- Steering Ratio (:1), At Lock : - TBD -
- Fuel Tank Capacity, Approx (gal) : 33.0
- Fuel Tank Location : Mid-frame
