Features

Luxury Features

Air Conditioned Seats
Air Conditioning
Climate Control
Cruise Control
Digital Information Center
Dual Zone Electronic Climate Control System
Front AC Seats
Heated Mirrors
Heated Seat
Leather Gear Shifter
Leather Steering Wheel
Memory Seat Position
Phone
Steering Wheel Radio Controls
Tilt Steering Wheel
Tinted Windows

Power Equipment

12v Power Outlet
Power Adjustable Pedals
Power Driver's Seat
Power Locks
Power Mirrors
Power Steering
Power Windows

Safety Features

Anti-Lock Brakes
Child Proof Door Locks
Daytime Running Lights
Driver's Air Bag
Dynamic Stability Contol
Fog Lights
Intermittent Wipers
Keyless Entry
Parking Sensors
Passenger Air Bag
Rear Defogger
Roll Stability Control
Security System
Side Air Bags
Side Curtain Airbags
Traction Control System

Audio / Video

Factory System
AM/FM
Aux. Audio Input
Bluetooth
CD Changer
CD Player
MP3
Premium Sound
Reverse Camera
Satellite Radio
Subwoofer

Interior & Exterior

Center Arm Rest
Center Console
Clock
Tachometer
Vanity Mirrors
Locking Tailgate
Tow Hooks

Standard Specs

MECHANICAL

Engine, Vortec 6.0L Variable Valve Timing V8 SFI E85-compatible, FlexFuel capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm, 380 lb-ft of torque [513.0 N-m] @ 4200 rpm)
Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode (Requires (L96) Vortec 6.0L V8 SFI engine.)
Rear axle, 3.73 ratio
Suspension Package, Handling/Trailering, heavy-duty includes 35mm monotube shocks and 34mm front stabilizer bar
GVWR, 10,800 lbs. (4899 kg) with single rear wheels (Requires TK30743 with (L96) Vortec 6.0L V8 SFI engine.)
Air cleaner, high-capacity
Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
Differential, heavy-duty automatic locking rear
Four wheel drive
Trailering equipment, heavy-duty includes trailering hitch platform, 7- wire harness (harness includes wires for: park lamps, backup lamps, right turn, left turn, electric brake lead, battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector and instrument panel jumper wiring harness for electric trailer brake controller
Cooling, auxiliary external transmission oil cooler heavy-duty air-to-oil
Cooling, external engine oil cooler heavy-duty air-to-oil, integral to driver side of radiator tank
Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
Alternator, 125 amps
Trailer brake controller, integrated
Recovery hooks, front, Black
Frame, fully-boxed, hydroformed front section
Skid Plate Package, frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member, protecting front underbody, oil pan, differential case and transfer case, frame-mounted shields
Suspension, front independent, torsion bar
Suspension, rear 4+1+2 multi-leaf springs for single rear wheel and 3+1+2 multi-leaf springs for dual rear wheel
Steering, power
Brakes, 4-wheel antilock, 4-wheel disc (Standard on T*30743 models only.)
Exhaust, aluminized stainless-steel muffler and tailpipe

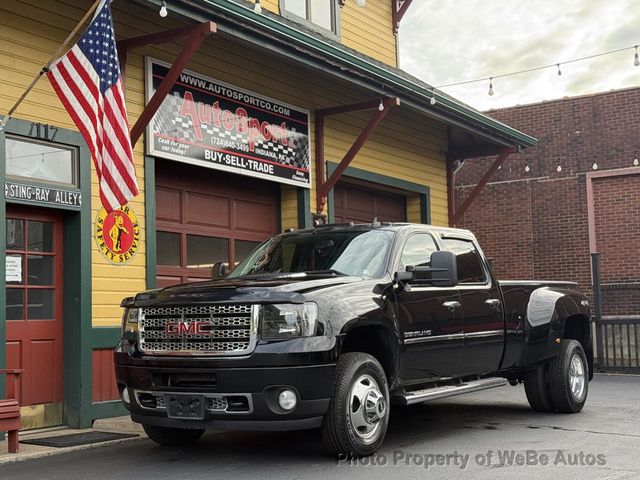

Vehicle Name : GMC Sierra 3500HD
Body Style : Crew Cab 8' Fleetside
Body Code : E63
Drivetrain : 4-Wheel Drive
Gross Axle Wt Rating - Front (lbs) : 4800
Gross Axle Wt Rating - Rear (lbs) : 7050
Curb Weight - Front (lbs) : 3803
Curb Weight - Rear (lbs) : 2931
Gross Vehicle Weight Rating Cap (lbs) : 13000
Gross Combined Wt Rating (lbs) : 16000
Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
Wt Distributing Hitch - Max Trailer Wt. (lbs) : 9200
Wt Distributing Hitch - Max Tongue Wt. (lbs) : 1380
Fifth Wheel Hitch - Max Trailer Wt. (lbs) : 9200
Fifth Wheel Hitch - Max Tongue Wt. (lbs) : 2300
Maximum Trailering Capacity (lbs) : 17000
Engine Order Code : L96
Engine Type : Gas/Ethanol V8
Displacement : 6.0L/366
Fuel System : Electronic Fuel Injection
SAE Net Horsepower @ RPM : 322 @ 4400
SAE Net Torque @ RPM : 380 @ 4200
Trans Order Code : MYD
Trans Type : 6
Trans Description Cont. : Automatic
First Gear Ratio (:1) : 4.03
Second Gear Ratio (:1) : 2.36
Third Gear Ratio (:1) : 1.53
Fourth Gear Ratio (:1) : 1.15
Fifth Gear Ratio (:1) : 0.85
Sixth Gear Ratio (:1) : 0.67
Reverse Ratio (:1) : 3.06
Transfer Case Model : Magna MP1625/6
Transfer Case Gear Ratio (:1), High : 1.00
Transfer Case Gear Ratio (:1), Low : 2.69
Cold Cranking Amps @ 0° F (Primary) : 600
Maximum Alternator Capacity (amps) : 125
Engine Oil Cooler : Yes
Frame Type : Hydroformed
Suspension Type - Front : Independent
Suspension Type - Rear : Multi-leaf
Spring Capacity - Front (lbs) : 4800
Spring Capacity - Rear (lbs) : 7050
Axle Type - Front : Independent
Axle Type - Rear : Full-Floating
Axle Capacity - Front (lbs) : 4800
Axle Capacity - Rear (lbs) : 7050
Axle Ratio (:1) - Rear : 3.73
Shock Absorber Diameter - Front (mm) : 35
Shock Absorber Diameter - Rear (mm) : 35
Stabilizer Bar Diameter - Front (in) : 1.32
Steering Type : Pwr Recirculating Ball
Steering Ratio (:1), On Center : 16.0
Turning Diameter - Curb to Curb (ft) : 54.8
Brake Type : Pwr
Brake ABS System : 4-Wheel
Disc - Front (Yes or ) : Yes
Disc - Rear (Yes or ) : Yes
Front Brake Rotor Diam x Thickness (in) : 13.98 x 1.57
Rear Brake Rotor Diam x Thickness (in) : 14.17 x 1.34

EXTERIOR

Wheels, 18" (45.7 cm) forged polished aluminum (Standard on T*30743 models only.)
Tires, LT265/70R18E all-season, blackwall (Standard on T*30743 models only. Includes (PYR) 18" (45.7 cm) forged polished aluminum wheels.)
Pickup box, Wideside
Wheel, 18" x 8" (43.2 cm x 19.1 cm) full-size, steel spare (Standard on T*30743 models only.)
Tire carrier, lockable outside spare, winch-type mounted under frame at rear
Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
LPO, Rear wheelhouse liner (Not included on T*30943 models)
Air dam, color-keyed
Bumper, front body-color
Bumper, rear body-color, step-style with pad
Moldings, body-color bodyside with chrome insert
Grille, chrome surround with chrome center, Denali-exclusive
Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
Fog lamps, front, halogen
Lamps, Smoked Amber roof marker (Standard with (C7J) 13,000 lbs. GVWR (dual rear wheel) only. With single rear wheel GVWR not available with (YF5) California state emissions requirements.)
Lamps, dual cargo area lamps
Mirrors, outside heated power-adjustable vertical camper manual-folding and extension, Black integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass)
Wipers, front intermittent wet-arm with pulse washers
Door handles, chrome
Tailgate protection top of tailgate protection cap
Tailgate, locking
Tailgate, EZ-Lift
Front Tire Order Code : QWF
Rear Tire Order Code : QWF
Spare Tire Order Code : ZGM
Front Tire Size : LT265/70R18E
Rear Tire Size : LT265/70R18E
Spare Tire Size : LT265/70R18E
Front Tire Capacity (lbs) : 2860
Rear Tire Capacity (lbs) : 3525
Front Wheel Size (in) : 18 x 8.0
Rear Wheel Size (in) : 18 x 8.0
Spare Wheel Size (in) : 17 x 6.5
Front Wheel Material : Aluminum
Rear Wheel Material : Aluminum
Spare Wheel Material : Steel
Wheelbase (in) : 153.7
Length, Overall w/o rear bumper (in) : 240.2
Width, Max w/o mirrors (in) : 80.0
Height, Overall (in) : 77.4
Overhang, Front (in) : 38.8
Overhang, Rear w/o bumper (in) : 47.7
Front Bumper to Back of Cab (in) : 150.9
Cab to Axle (in) : 41.6
Ground to Top of Load Floor (in) : 37.9
Ground Clearance, Front (in) : 10.0
Ground Clearance, Rear (in) : 8.4
Cargo Box Length @ Floor (in) : 78.8
Cargo Box Width @ Floor (in) : 62.5
Cargo Box Width @ Wheelhousings (in) : 50.6
Cargo Box (Area) Height (in) : 21.0
Tailgate Width (in) : 61.6
Cargo Volume (ft³) : 60.7

ENTERTAINMENT

Audio system, AM/FM stereo with MP3 compatible 6-disc CD player USB port, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume, TheftLock, auxiliary input jack and 36 cross-band presets
SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Not available with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete. Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)
Audio system feature, Bose premium speaker system with sub-woofer in center console
Bluetooth for phone personal cell phone connectivity to vehicle audio system (Requires OnStar hardware (UE1), but subscription to OnStar services not required for operation.)

INTERIOR

Seats, front bucket includes 12-way power driver and front passenger seat adjusters, 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console, dual inboard armrests and storage pockets
Seat trim, Perforated nuance leather-appointed seats
Seats, heated and cooled, seat cushion and seat back for driver and front passenger with 4-way lumbar
Seat adjuster, driver 12-way power
Seat adjuster, front passenger 12-way power
Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
Console, floor with CD carrier, storage bin, rear cup holders and rear powerpoints
Floor covering, color-keyed carpeting includes rear floor mats
Floor mats, color-keyed carpeted first and second row, removable
Steering wheel, heated, leather-wrapped and color-keyed with theft-deterrent locking feature
Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock, color-keyed
Steering wheel controls, mounted audio and Driver Information Center controls which provides access to enhanced Driver Information Center features and information
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer
Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification)
Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
Windows, power with driver and front passenger Express-Down
Door locks, power
Remote vehicle starter system includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (Remote Keyless Entry does not lock/unlock tailgate.)
Pedals, power-adjustable for accelerator and brake
Cruise control, electronic with set and resume speed
Universal Home Remote
Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
Cup holders, in console and rear
Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
Mirror, inside rearview auto-dimming with rear camera display (Included and only available with (UVC) Rear Vision Camera when ordered with (UUN) or (UUJ) audio systems. Not included when (UYS) audio system with navigation, AM/FM stereo with CD player and MP3 playback is ordered.)
Headliner, Opal Gray-colored cloth with matching retainer moldings
Visors, driver and front passenger illuminated vanity mirrors padded with cloth trim, Opal-Gray-colored
Assist handles, front passenger and rear outboard
Lighting, interior with dome and reading lights, illuminated entry feature and blue backlit instrument panel switches
Coat hooks, driver- and passenger-side rear
Passenger Capacity : 5
Front Head Room (in) : 41.3
Front Leg Room (in) : 41.3
Front Shoulder Room (in) : 65.2
Front Hip Room (in) : 60.3
Second Head Room (in) : 40.6
Second Leg Room (in) : 39.0
Second Shoulder Room (in) : 65.2
Second Hip Room (in) : 65.5

SAFETY

StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist (Standard on T*30743 models only. Not available on T*30943 dually models.)
Daytime Running Lamps with automatic exterior lamp control
Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual and child safety seat instructions for more safety information.)
Air bags, head curtain side-impact, front outboard seating positions with rollover sensor (Available on single rear wheel models only. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Single rear wheel models only. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance including Remote Ignition Block, Remote Door Unlock (requires power locks), Turn-by-Turn Navigation with Destination Download (requires navigation radio) and OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Also includes Stolen Vehicle Slowdown when (LML) Duramax 6.6L Turbo Diesel V8 engine is not ordered. Not available with a ship-to of Puerto Rico or the Virgin Islands. Visit onstar.com for details and system limitations.)
Automatic Crash Response
Stolen Vehicle Assistance
OnStar Turn-by-Turn Navigation
Rear Parking Assist, Ultrasonic with audible warning
Rear Vision Camera (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation).
Door locks, rear child security

EPA Fuel Economy & Specification

Total Cooling System Capacity (qts) : - TBD -
Spare Tire Capacity (lbs) : - TBD -
Revolutions/Mile @ 45 mph - Front : - TBD -
Revolutions/Mile @ 45 mph - Rear : - TBD -
Revolutions/Mile @ 45 mph - Spare : - TBD -
Steering Ratio (:1), At Lock : - TBD -
Turning Diameter - Wall to Wall (ft) : - TBD -
Fuel Tank Capacity, Approx (gal) : 36
Fuel Tank Location : - TBD -
Cab to End of Frame (in) : - TBD -
Ground to Top of Frame (in) : - TBD -
Frame Width, Rear (in) : - TBD -
Cargo Box Width @ Top, Rear (in) : - TBD -
Ext'd Cab Cargo Volume (ft³) : - TBD -
