MECHANICAL

Engine, Vortec 6.0L V8 SFI (360 hp [268.4 kW] @ 5400 rpm, 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) (Requires (E63) wideside pickup box.)
Transmission, 6-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul mode (Requires (L96) or (LY6) Vortec 6.0L V8 SFI engine)
Rear axle, 3.73 ratio
Pickup box, Wideside
Air cleaner, high-capacity
Transfer case, electronic shift with rotary dial controls (Requires 4WD models)
Differential, heavy-duty automatic locking rear
Four wheel drive
Cooling, external engine oil cooler heavy-duty air-to-oil, integral to driver side of radiator tank
Cooling, auxiliary external transmission oil cooler heavy-duty air-to-oil
Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
Alternator, 125 amps
Trailer brake controller, integrated
Frame, hydroformed front section
GVWR, 9200 lbs. (4173 kg)
Suspension, front independent, torsion bar
Suspension, rear 2-stage multi-leaf springs semi-elliptic
Steering, power, recirculating ball
Brakes, 4-wheel antilock, 4-wheel disc
Exhaust aluminized stainless-steel muffler and tailpipe
Vehicle Name : GMC Sierra 2500HD
Body Style : Crew Cab 6.5' Fleetside
Body Code : E63
Drivetrain : 4-Wheel Drive
Gross Axle Wt Rating - Front (lbs) : 4200
Gross Axle Wt Rating - Rear (lbs) : 6084
Curb Weight - Front (lbs) : 3462
Curb Weight - Rear (lbs) : 2498
Gross Vehicle Weight Rating Cap (lbs) : 9200
Gross Combined Wt Rating (lbs) : 16000
Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
Wt Distributing Hitch - Max Trailer Wt. (lbs) : 9800
Wt Distributing Hitch - Max Tongue Wt. (lbs) : 1470
Fifth Wheel Hitch - Max Trailer Wt. (lbs) : 9800
Fifth Wheel Hitch - Max Tongue Wt. (lbs) : 2450
Engine Order Code : L96
Engine Type : Gas V8
Displacement : 6.0L/366
Fuel System : SFI
SAE Net Horsepower @ RPM : 360 @ 5400
SAE Net Torque @ RPM : 380 @ 4200
Trans Order Code : MYD
Trans Type : 6
Trans Description Cont. : HD Automatic w/OD
First Gear Ratio (:1) : 4.03
Second Gear Ratio (:1) : 2.36
Third Gear Ratio (:1) : 1.53
Fourth Gear Ratio (:1) : 1.15
Fifth Gear Ratio (:1) : 0.85
Sixth Gear Ratio (:1) : 0.67
Reverse Ratio (:1) : 3.06
Transfer Case Model : Magna MP1625/6
Transfer Case Gear Ratio (:1), High : 1.00:1
Transfer Case Gear Ratio (:1), Low : 2.56:1
Cold Cranking Amps @ 0° F (Primary) : 600
Maximum Alternator Capacity (amps) : 125
Engine Oil Cooler : Yes
Frame Type : Hydroformed
Suspension Type - Front : Independent
Suspension Type - Rear : 2-Stage Multi-Leaf
Spring Capacity - Front (lbs) : 4800
Spring Capacity - Rear (lbs) : 6084
Axle Type - Front : Independent
Axle Type - Rear : Full Floating
Axle Capacity - Front (lbs) : 4800
Axle Capacity - Rear (lbs) : 6900
Axle Ratio (:1) - Front : 3.73
Axle Ratio (:1) - Rear : 3.73
Shock Absorber Diameter - Front (mm) : 35
Shock Absorber Diameter - Rear (mm) : 35
Stabilizer Bar Diameter - Front (in) : 1.42
Steering Type : Pwr
Steering Ratio (:1), On Center : 24:1
Turning Diameter - Curb to Curb (ft) : 51.2
Brake Type : Pwr
Brake ABS System : 4-Wheel
Disc - Front (Yes or ) : Yes
Disc - Rear (Yes or ) : Yes
Front Brake Rotor Diam x Thickness (in) : 13.0 x 1.8
Rear Brake Rotor Diam x Thickness (in) : 13.5 x 0.79

EXTERIOR

Wheels, 4-17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum includes 16" (40.6 cm) steel spare wheel (spare wheel will not cosmetically match the other 4 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered
Tires, LT265/70R17E all-terrain, blackwall (Requires (N89) 17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum wheels. Includes 4 tires and (ZER) LT265/75R16 on-/off-road blackwall spare tire with (E63) Wideside pickup box. Includes 4 tires with (ZW9) pickup box delete.)
Tire, spare LT265/75R16E on-/off-road, blackwall includes 16" (40.6 cm) steel spare wheel and spare tire carrier (Requires (N89) 17" x 7.5" (43.2 cm x 19.1 cm) 8-lug bright machined aluminum wheels and (ZW9) pickup box delete)
Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered.)
Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not available with (ZW9) pickup box delete or (VF7) rear bumper delete. Deleted when SEO (5Z4) spare wheel and carrier delete is ordered.)
Recovery hooks, front, frame-mounted
Bumper, front chrome (Includes body-color bumper top caps.)
Bumper, rear chrome, step-style with pad (Requires RPO (E63) wideside pickup box)
Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered)
Grille, chrome surround
Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
Lamps, dual cargo area lamps
Fog lamps, front, halogen
Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators (Mirrors are body-colored and include curb-tilt feature. Upgradeable to (DPN) outside vertical camper mirrors.)
Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window. Included with (PCM) Work Truck Preferred Package.)
Wipers, front intermittent wet-arm with pulse washers
Tailgate protection top of tailgate protection cap
Front Tire Order Code : QXT
Rear Tire Order Code : QXT
Spare Tire Order Code : ZER
Front Tire Size : LT265/70R17E
Rear Tire Size : LT265/70R17E
Spare Tire Size : LT265/75R16E
Front Tire Capacity (lbs) : 2470
Rear Tire Capacity (lbs) : 3043
Front Wheel Size (in) : 17 x 7.5
Rear Wheel Size (in) : 17 x 7.5
Front Wheel Material : Aluminum
Rear Wheel Material : Aluminum
Spare Wheel Material : Steel
Wheelbase (in) : 153.0
Length, Overall w/o rear bumper (in) : 235.3
Width, Max w/o mirrors (in) : 80.0
Height, Overall (in) : 77.2
Overhang, Front (in) : 39.4
Front Bumper to Back of Cab (in) : 150.9
Cab to Axle (in) : 41.5
Ground to Top of Load Floor (in) : 37.1
Ground Clearance, Front (in) : 9.5
Ground Clearance, Rear (in) : 11.8
Cargo Box Length @ Floor (in) : 78.9
Cargo Box Width @ Floor (in) : 62.5
Cargo Box Width @ Wheelhousings (in) : 50.6
Cargo Box (Area) Height (in) : 21.0
Tailgate Width (in) : 61.6
Cargo Volume (ft³) : 60.7
Ext'd Cab Cargo Volume (ft³) : 60.7

ENTERTAINMENT

Audio system, AM/FM stereo with CD player and MP3 playback seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed compensated volume, TheftLock, auxiliary input jack, and USB port
XM Radio is standard on more than 50 2010 GM models, including three trial months of service. XM turns your world on with commercial-free music channels for virtually every music genre, all in amazing digital quality sound. Turn on your favorite sports, the biggest names in News, Talk and Comedy, family programming, exclusive concerts and original music series, wherever you go from coast to coast. Everything worth listening to is now on XM (XM service available only in the 48 contiguous United States and the District of Columbia. XM Radio subscription required and sold separately after trial period. Fees, taxes, and a one-time re-activation fee, may apply. Subscriptions governed by XM Customer Agreement available at xmradio.com. All fees and programming subject to change. Family programming Packages are available. Not available with (UUL) AM/FM stereo with MP3 compatible CD player and navigation, (UUK) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UE0) OnStar, delete.)
Audio system feature, Bose Premium speaker system with subwoofer in center console
Audio system feature, USB port
Bluetooth for phone, personal cell phone connectivity to vehicle audio system

INTERIOR

Seats, front bucket includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console and storage pockets
Seat trim, Leather-appointed front seats
Seat adjuster, driver 10-way power
Seat adjuster, front passenger 10-way power
Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor)
Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock
Steering wheel, leather-wrapped with theft-deterrent locking feature
Steering wheel controls mounted audio controls
Console, floor with storage compartment, 2 auxiliary power outlets and dual cup holders
Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
Instrumentation, analog with speedometer, fuel level, engine temperature, tachometer, voltmeter and oil pressure indicators
Driver Information Center with odometer, trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification) (Driver Information Center controls are operated through the trip button unless (UK3) steering wheel mounted audio controls is ordered. On 3SA and 4SA, includes 8-point compass and outside temperature.)
Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
Windows, power with driver Express-Down (Includes front passenger Express-down)
Door locks, power includes Remote Keyless Entry
Cruise control, electronic with set and resume speed, located on steering wheel
Remote vehicle starter system includes Remote Keyless Entry (Remote Keyless Entry does not lock/unlock tailgate when (PDD) SLT Convenience Package is ordered.)
Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
Defogger, rear-window electric (Not available with (A48) power sliding rear window.)
Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
Mirror, inside rearview auto-dimming ((DD8) inside rearview auto-dimming mirror will be replaced with (DRC) inside rearview mirror with camera display when ordered with (UVC) rearview camera system and (UUI), (UUN) or (UUJ) radios.)
Headliner, Opal Gray-colored cloth with matching retainer moldings
Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
Coat hooks, rear driver and passenger side
Passenger Capacity : 5
Total Cooling System Capacity (qts) : 16.4
Front Head Room (in) : 41.3
Front Leg Room (in) : 41.3
Front Shoulder Room (in) : 65.2
Front Hip Room (in) : 62.5
Second Head Room (in) : 40.6
Second Leg Room (in) : 39.0
Second Shoulder Room (in) : 65.2
Second Hip Room (in) : 65.5

SAFETY

StabiliTrak, stability control system with Proactive Roll Avoidance (Requires T*20753 or T*20743 Models.)
Daytime Running Lamps with automatic exterior lamp control
Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owners Manual and child safety seat instructions for more safety information)
OnStar, 1-year of Safe and Sound plan. Includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Ignition Block, Remote Door Unlock (requires power locks), Roadside Assistance, Remote Horn and Lights, Hands Free Calling, OnStar Vehicle Diagnostics, and Low Mileage Discount (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Vehicle Diagnostics capabilities vary by model. Remote door unlock success varies with conditions. Ability to locate stolen vehicles varies with conditions. Subscription Service Agreement required. Call 1-888-4ONSTAR (1-888-466-7827) or visit onstar.com for OnStar's Terms and Conditions, Privacy Policy and details and system limitations. Not available with a ship-to of Puerto Rico or the Virgin Islands. For a list of vehicles with Automatic Crash Notification visit onstar.com. Remote Door Unlock requires (AU3) power door locks.)
Tire pressure monitoring system (does not apply to spare tire)

EPA Fuel Economy & Specification

Tons/yr of CO2 Emissions @ 15K mi/year : - TBD -
Spare Tire Capacity (lbs) : - TBD -
Revolutions/Mile @ 45 mph - Front : - TBD -
Revolutions/Mile @ 45 mph - Rear : - TBD -
Revolutions/Mile @ 45 mph - Spare : - TBD -
Spare Wheel Size (in) : 16 x - TBD -
Steering Ratio (:1), At Lock : - TBD -
Turning Diameter - Wall to Wall (ft) : - TBD -
Fuel Tank Capacity, Approx (gal) : 26
Fuel Tank Location : - TBD -
Overhang, Rear w/o bumper (in) : - TBD -
Cab to End of Frame (in) : - TBD -
Ground to Top of Frame (in) : - TBD -
Frame Width, Rear (in) : - TBD -
Cargo Box Width @ Top, Rear (in) : - TBD -

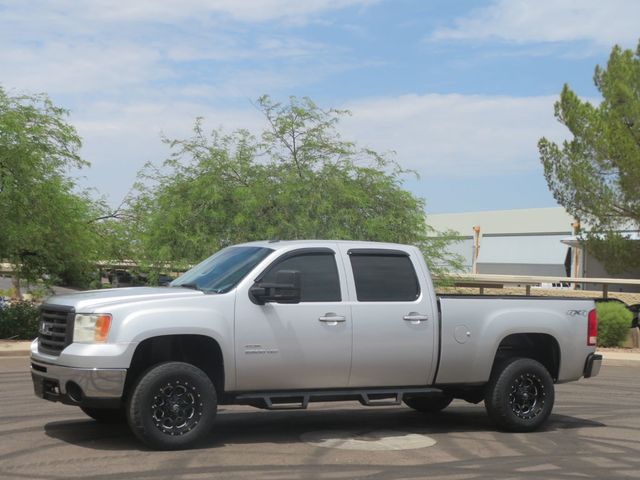

2010 GMC Sierra 2500HD
