Details
- Condition
Pre-Owned Clear Title - Engine
6.8L 10 CYLINDER - Drivetrain
Rear Wheel Drive - Interior
Medium stone - VIN #
1FTWW32Y58EA08686 - Mileage
80000 - Transmission
Automatic - Exterior Color
Oxford White - Stock #
A08686 - Warranty
As-Is
Luxury Features
- Wood Trim
Power Equipment
- Power Steering
Safety Features
- Driver's Air Bag
- Intermittent Wipers
- Passenger Air Bag
Audio / Video
- AM/FM
Interior & Exterior
- Clock
- Cloth Seats
- Tachometer
- Vanity Mirrors
- Locking Tailgate
- Tow Hooks
Condition Report
- No Known Accidents
- No Known Bodywork
Standard Specs
MECHANICAL
- 6.8L SOHC 30-valve SMFI Triton V10 engine
- Stationary elevated engine idle control
- Engine block heater *Standard in AK, CO, IA, ID, ME, MI, MN, MT, ND, NH, NY, SD, VT, WI & WY. Optional in all other states.*
- 6-speed manual transmission w/OD
- 4.10 axle ratio
- Rear wheel drive
- 72 amp/hr (650 CCA)battery
- 115-amp HD alternator
- Trailer tow pkg-inc: 7-wire harness w/relays, 7/4-pin trailer combination connector, trailer brake wiring kit w/o controller
- Class V trailer hitch receiver-inc: 2" hitch
- 8' pickup box-inc: (6) tie-down hooks, partitionable & stackable storage
- (2) Front tow hooks
- Twin I-beam front axle w/coil spring suspension
- Rear auxiliary springs
- Full-floating rear axle
- HD shock absorbers
- Front/rear stabilizer bar
- (6) LT245/75R17E all-season BSW tires
- (6) 17" argent painted steel wheels
- Full-size spare tire & wheel w/lock & carrier
- 4-ton hydraulic jack
- Pwr steering w/steering damper
- Pwr 4-wheel disc brakes
- 4-wheel anti-lock braking system (ABS)

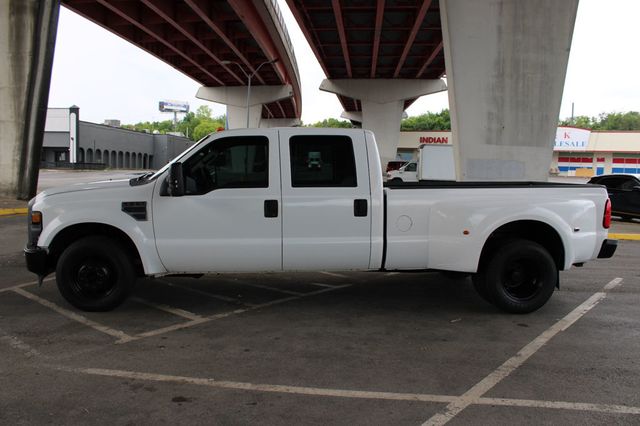

- Vehicle Name : Ford Super Duty F-350 DRW
- Body Style : Crew Cab 8'
- Body Code : 172" WB
- Drivetrain : Rear Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 4250
- Gross Axle Wt Rating - Rear (lbs) : 9000
- Curb Weight - Front (lbs) : 3590
- Curb Weight - Rear (lbs) : 3220
- Gross Vehicle Weight Rating Cap (lbs) : 12600
- Gross Combined Wt Rating (lbs) : 20500
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs) : 13600
- Wt Distributing Hitch - Max Tongue Wt. (lbs) : 2040
- Fifth Wheel Hitch - Max Trailer Wt. (lbs) : 13600
- Fifth Wheel Hitch - Max Tongue Wt. (lbs) : 3400
- Engine Order Code : 99Y
- Engine Type : Gas V10
- Displacement : 6.8L/415
- Fuel System : SMFI
- SAE Net Horsepower @ RPM : 362 @ 4750
- SAE Net Torque @ RPM : 457 @ 3250
- Trans Order Code : 445
- Trans Type : 6
- Trans Description Cont. : HD Manual w/OD
- First Gear Ratio (:1) : 5.79
- Second Gear Ratio (:1) : 3.30
- Third Gear Ratio (:1) : 2.10
- Fourth Gear Ratio (:1) : 1.30
- Fifth Gear Ratio (:1) : 1.00
- Sixth Gear Ratio (:1) : 0.72
- Reverse Ratio (:1) : 5.23
- Clutch Size (in) : 11.9
- Cold Cranking Amps @ 0° F (Primary) : 650
- Maximum Alternator Capacity (amps) : HD 115
- Maximum Alternator Watts : 1950
- Frame Type : Ladder-Type
- Suspension Type - Front : Coil
- Suspension Type - Rear : 2-Stage Leaf
- Spring Capacity - Front (lbs) : 3800
- Spring Capacity - Rear (lbs) : 9000
- Axle Type - Front : Ford Twin-I-Beam
- Axle Type - Rear : Dana 80 Full-Floating
- Axle Capacity - Front (lbs) : 4850
- Axle Capacity - Rear (lbs) : 9000
- Axle Ratio (:1) - Rear : 4.10
- Shock Absorber Diameter - Front (mm) : 35
- Shock Absorber Diameter - Rear (mm) : 35
- Steering Type : Pwr
- Steering Ratio (:1), On Center : 17.0
- Turning Diameter - Curb to Curb (ft) : 58.5
- Turning Diameter - Wall to Wall (ft) : 60.4
- Brake Type : Pwr
- Brake ABS System : 4-Wheel
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 13.66 x 0.58
- Rear Brake Rotor Diam x Thickness (in) : 13.39 x 0.47
EXTERIOR
- Black painted steel front bumper w/grained mold-in-color top cover
- Black painted rear bumper
- Black lower air dam
- Front fender vents
- Black box-rail & tailgate top-edge moldings
- Black painted grille
- Sealed beam halogen headlamps
- Pickup box/cargo lights
- Clearance lights-inc: roof, rear fender, below tailgate
- Black fold-away manual mirrors
- Black door handles
- Solar tinted glass
- Interval windshield wipers
- Front license plate bracket *Standard in states where required. Optional in all other states.*
- Rear license plate bracket
- Removable locking tailgate w/black handle & Tailgate Assist
- Front Tire Order Code : TBK
- Rear Tire Order Code : TBK
- Spare Tire Order Code : TBK
- Front Tire Size : LT245/75R17E
- Rear Tire Size : LT245/75R17E
- Spare Tire Size : LT245/75R17E
- Front Tire Capacity (lbs) : 2910
- Rear Tire Capacity (lbs) : 2910
- Spare Tire Capacity (lbs) : 2910
- Revolutions/Mile @ 45 mph - Front : 664
- Revolutions/Mile @ 45 mph - Rear : 664
- Revolutions/Mile @ 45 mph - Spare : 664
- Front Wheel Size (in) : 17 x 6.5
- Rear Wheel Size (in) : 17 x 6.5
- Spare Wheel Size (in) : 17 x 6.5
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Spare Wheel Material : Steel
- Wheelbase (in) : 172.4
- Length, Overall w/o rear bumper (in) : 262.4
- Width, Max w/o mirrors (in) : 95.5
- Height, Overall (in) : 77.0
- Overhang, Front (in) : 37.6
- Overhang, Rear w/o bumper (in) : 52.4
- Front Bumper to Back of Cab (in) : 154.3
- Cab to Axle (in) : 56.3
- Cab to End of Frame (in) : 96.6
- Ground to Top of Load Floor (in) : 34.3
- Frame Width, Rear (in) : 36.5
- Ground Clearance, Rear (in) : 7.8
- Cargo Box Length @ Floor (in) : 98.0
- Cargo Box Width @ Top, Rear (in) : 63.6
- Cargo Box Width @ Floor (in) : 60.6
- Cargo Box Width @ Wheelhousings (in) : 50.9
- Cargo Box (Area) Height (in) : 20.0
- Tailgate Width (in) : 60.6
- Cargo Volume (ft³) : 77.4
INTERIOR
- HD vinyl front bench seat w/recline-inc: armrest, cupholders
- Vinyl fold-up rear bench seat
- Black vinyl full-floor covering
- Color-keyed scuff plates
- Black instrumentation-inc: tachometer, speedometer, oil pressure, coolant temp, fuel gauge, indicator lights, message center w/odometer, trip odometer, engine hour meter, warning messages, voltmeter, distance-to-empty, average fuel economy
- AM/FM stereo-inc: digital clock, (2) speakers
- (4) air registers w/positive shut-off
- Auxiliary pwr point
- Dash-top tray
- Glove box
- Ashtray & cigar lighter
- Color-keyed molded door trim panel-inc: hard armrest, grab handle, reflector
- Instrument panel mounted storage bin & trash bag hook
- Color-keyed cloth headliner
- Front passenger-side roof ride handle
- Rear seating roof ride handles
- Driver & passenger grab handles
- Rear seat LH/RH grab handles
- Front door operated dome lamp w/time delay off & IP switch
- Front/rear map lamps
- Dual color-keyed cloth sunvisors-inc: driver-side map strap, passenger-side mirror insert
- Dual color-keyed coat hooks
- Passenger Capacity : 6
- Total Cooling System Capacity (qts) : 26.4
SAFETY
- 4-wheel anti-lock braking system (ABS)
- Driver & front passenger airbags
- Color-keyed safety belts w/front seat outboard height adjustable D-rings
- BeltMinder seatbelt-not-buckled chime & flashing warning light
- Child seat tethers on all rear passenger seats
EPA Fuel Economy & Specification
- Engine Oil Cooler : - TBD -
- Stabilizer Bar Diameter - Front (in) : - TBD -
- Stabilizer Bar Diameter - Rear (in) : - TBD -
- Steering Ratio (:1), At Lock : - TBD -
- Fuel Tank Capacity, Approx (gal) : 38
- Fuel Tank Location : Midship
- Front Head Room (in) : - TBD -
- Front Leg Room (in) : - TBD -
- Front Shoulder Room (in) : - TBD -
- Front Hip Room (in) : - TBD -
- Second Head Room (in) : - TBD -
- Second Leg Room (in) : - TBD -
- Second Shoulder Room (in) : - TBD -
- Second Hip Room (in) : - TBD -
- Ground to Top of Frame (in) : - TBD -
- Ground Clearance, Front (in) : - TBD -
