Details
- Condition
Pre-Owned Clear Title - Engine
5.3L 8 CYLINDER - Drivetrain
Four Wheel Drive - Interior
Pewter - VIN #
1GTEK19BX7Z103233 - Mileage
161696 - Transmission
Automatic - Exterior Color
Deep Blue Metallic - Stock #
- Warranty
As-Is
Luxury Features
- Air Conditioning
- Dual Zone Electronic Climate Control System
Power Equipment
- 12v Power Outlet
- Power Steering
Safety Features
- Driver's Air Bag
- Intermittent Wipers
- Passenger Air Bag
Audio / Video
- AM/FM
Interior & Exterior
- Clock
- Cloth Seats
- Tachometer
- Vanity Mirrors
- Tow Hooks
Condition Report
- No Known Accidents
- No Known Bodywork
Standard Specs
MECHANICAL
- Engine, Vortec 5.3L V8 SFI FlexFuel (295 hp [219.7 kW] @ 5200 rpm, 335 lb-ft of torque [452.3 N-m] @ 4000 rpm) (Requires T*15*03, T*15543, T*15753 or T*15953 Models. - Standard on TC15753, T*15543 and T*15953 Models)
- Transmission, 4-speed automatic, electronically controlled with overdrive and tow/haul mode
- Transfer case, electronic Autotrac with push-button controls (Requires 4WD models)
- Four wheel drive
- Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
- Alternator, 145 amps
- Pickup box, Wideside
- Frame, hydroformed
- Recovery hooks, front, frame-mounted
- GVWR, 6400 lbs. (2903 kg) (Requires T*15903, TK15703, TK15753, T*15953, or TK15553 Models)
- Suspension Package, Handling/Trailering, heavy-duty, includes 36 mm piston monotube shocks
- Suspension, front independent (2WD models include coil springs. 4WD models include torsion bars)
- Suspension, rear 2-stage multi-leaf springs, semi-elliptic (Standard with Regular and Extended Cab models only)
- Tires, P265/70R17 all-season, blackwall (Requires 4WD Regular or Extended Cab models. Not available with (Z71) Off-Road Suspension Package.)
- Tire, full-size spare, 17" (43.2 cm) steel, located at rear underbody of vehicle
- Tire carrier, outside spare, winch-type mounted under frame at rear
- Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug chrome-styled steel, includes chrome center caps and steel spare (Upgradeable to (QF7) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug aluminum wheels or (P27) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) 6-lug polished cast aluminum wheels.)
- Steering, power
- Brakes, 4-wheel antilock, front disc/rear drum
- Exhaust, aluminized stainless-steel muffler and tailpipe
- Tools, mechanical jack and wheel wrench located in back of cab

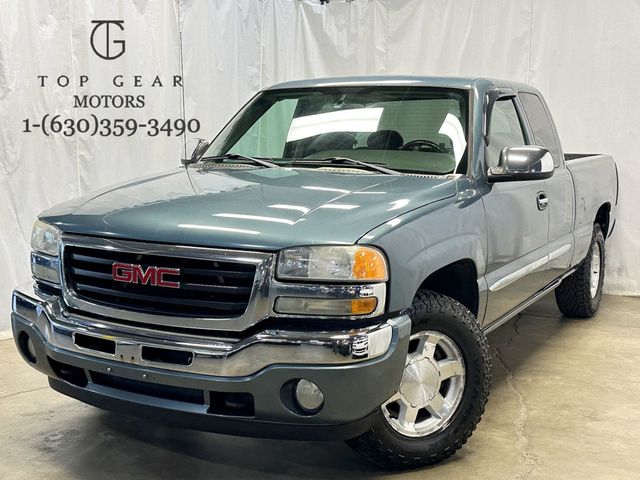

- Vehicle Name : GMC Sierra 1500 Classic
- Body Style : Ext Cab 8' Wideside
- Body Code : E63
- Drivetrain : 4-Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 3925
- Gross Axle Wt Rating - Rear (lbs) : 3750
- Curb Weight - Front (lbs) : 3083
- Curb Weight - Rear (lbs) : 1961
- Gross Vehicle Weight Rating Cap (lbs) : 6900
- Gross Combined Wt Rating (lbs) : 13000
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs) : 7500
- Wt Distributing Hitch - Max Tongue Wt. (lbs) : 1125
- Fifth Wheel Hitch - Max Trailer Wt. (lbs) : N/A
- Fifth Wheel Hitch - Max Tongue Wt. (lbs) : N/A
- Engine Order Code : L59
- Engine Type : Gas V8
- Displacement : 5.3L/325
- Fuel System : SFI
- SAE Net Horsepower @ RPM : 295 @ 5200
- SAE Net Torque @ RPM : 335 @ 4000
- Trans Order Code : M30
- Trans Type : 4
- Trans Description Cont. : Automatic w/OD
- First Gear Ratio (:1) : 3.06
- Second Gear Ratio (:1) : 1.63
- Third Gear Ratio (:1) : 1.00
- Fourth Gear Ratio (:1) : 0.70
- Reverse Ratio (:1) : 2.29
- Transfer Case Model : New Venture 261 LD
- Transfer Case Gear Ratio (:1), High : 1.00
- Transfer Case Gear Ratio (:1), Low : 2.72
- Cold Cranking Amps @ 0° F (Primary) : 600
- Maximum Alternator Capacity (amps) : 145
- Frame Type : Ladder
- Suspension Type - Front : Torsion Bar
- Suspension Type - Rear : 2-Stage Multi-Leaf
- Spring Capacity - Front (lbs) : 3925
- Spring Capacity - Rear (lbs) : 3750
- Axle Type - Front : Independent
- Axle Type - Rear : Semi-Floating
- Axle Capacity - Front (lbs) : 3925
- Axle Capacity - Rear (lbs) : 3750
- Axle Ratio (:1) - Front : 3.42
- Axle Ratio (:1) - Rear : 3.42
- Shock Absorber Diameter - Front (mm) : 35
- Shock Absorber Diameter - Rear (mm) : 35
- Stabilizer Bar Diameter - Front (in) : 1.12
- Steering Type : Pwr
- Turning Diameter - Curb to Curb (ft) : 51.1
- Brake Type : Pwr
- Brake ABS System : Four-Wheel
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 12.0 x 1.10
- Rear Brake Rotor Diam x Thickness (in) : 12.8 x 0.78
EXTERIOR
- Paint, solid
- Bumper, front chrome (Includes body-color lower with Crew Cab models.)
- Bumper, rear chrome, step-style with pad
- Air dam, Gray
- Grille, chrome surround
- Moldings, bodyside (Moldings are bright)
- Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
- Daytime Running Lamps, with automatic exterior lamp control
- Lamps, dual cargo area lamps
- Fog lamps, front, halogen
- Mirrors, outside heated power-adjustable, Black, manual-folding (Upgradeable to (DL3) outside heated, power-adjustable, power-folding mirrors or (DPN) outside vertical camper mirrors.)
- Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended Cab models, includes rear and rear quarter windows. With Crew Cab models or (C49) rear-window defogger, includes light-tinted rear window.)
- Windows, swing-out rear quarter (Standard with Extended Cab models only)
- Wipers, front intermittent wet-arm with pulse washers
- Tailgate protection, top of tailgate protection cap
- Front Tire Order Code : QVL
- Rear Tire Order Code : QVL
- Spare Tire Order Code : QVL
- Front Tire Size : P265/70R17
- Rear Tire Size : P265/70R17
- Spare Tire Size : P265/70R17
- Front Wheel Size (in) : 17 x 7.5
- Rear Wheel Size (in) : 17 x 7.5
- Spare Wheel Size (in) : 17 x 7.5
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Spare Wheel Material : Steel
- Wheelbase (in) : 157.5
- Length, Overall w/o rear bumper (in) : 249.0
- Width, Max w/o mirrors (in) : 78.5
- Height, Overall (in) : 73.7
- Overhang, Front (in) : 36.9
- Overhang, Rear w/o bumper (in) : 52.0
- Front Bumper to Back of Cab (in) : 138.5
- Cab to Axle (in) : 55.5
- Ground to Top of Load Floor (in) : 33.7
- Ground Clearance, Front (in) : 8.4
- Ground Clearance, Rear (in) : 8.6
- Cargo Box Length @ Floor (in) : 97.6
- Cargo Box Width @ Top, Rear (in) : 64.8
- Cargo Box Width @ Floor (in) : 64.8
- Cargo Box Width @ Wheelhousings (in) : 50.0
- Cargo Box (Area) Height (in) : 19.5
- Tailgate Width (in) : 64.8
- Cargo Volume (ft³) : 73.9
INTERIOR
- Seat trim, Custom Cloth
- Seats, front bucket, includes (AG1) 6-way power driver seat adjuster, front passenger manual recline, adjustable outboard head restraints, inboard armrests and storage pockets
- Seat adjuster, driver 6-way power
- Seats, rear bench, 3-passenger, folding (includes child seat top tether anchor)
- Console, floor with storage compartment and dual cupholders
- Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)
- Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock
- Steering wheel, leather-wrapped, Black with theft-deterrent locking feature
- Theft-deterrent system, vehicle, PASSlock II
- Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature, oil pressure and tachometer
- Driver Information Center with trip odometer and message center (monitors numerous systems depending on vehicle equipment level including low fuel, turn signal "on", transmission temperature and oil change notification) (With (UK3) steering-wheel mounted audio controls, includes trip and fuel information selections and programmable personalization features)
- Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
- Cruise control, electronic with set and resume speed
- Windows, power with driver and front passenger Express-Down
- Door locks, power
- Remote Keyless Entry, with 2 transmitters, panic button and content theft alarm
- Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
- Defogger, rear-window electric (Not available with (A28) sliding rear window.)
- Audio system, AM/FM stereo with CD player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS) and speed-compensated volume (Upgradeable to (UC6) AM/FM stereo with 6-disc in-dash CD changer or (UB1) AM/FM stereo with CD and cassette player when (PDJ) Extended and Crew Cab South-West SLE Package is ordered. Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab models.)
- Audio system feature, Bose premium speaker system with sub-woofer in center console
- Steering wheel controls, mounted audio and Driver Information Center controls which provides access to enhanced Driver Information Center features and information
- Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models.)
- Cigarette lighter, on instrument panel
- Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
- Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
- Console, overhead mini with map lights (Not available with (CF5) power sunroof)
- Headliner, Shale-colored cloth with matching retainer moldings
- Visors, driver and front passenger, padded with cloth trim, extenders, pocket on driver-side and vanity mirror on passenger-side, Shale-colored
- Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models)
- Coat hook, driver-side rear (Also includes passenger-side coat hook on Extended and Crew Cab models)
- Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
- Door trim, side reflectors (Also includes lights on front doors with Crew Cab models)
- Passenger Capacity : 5
- Total Cooling System Capacity (qts) : 16.8
- Front Head Room (in) : 41.0
- Front Leg Room (in) : 41.3
- Front Shoulder Room (in) : 65.2
- Front Hip Room (in) : 61.4
- Second Head Room (in) : 38.4
- Second Leg Room (in) : 33.7
- Second Shoulder Room (in) : 66.3
- Second Hip Room (in) : 61.4
SAFETY
- Brakes, 4-wheel antilock, front disc/rear drum
- Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
- Steering column, Tilt-Wheel, adjustable with brake/transmission shift interlock
- Daytime Running Lamps, with automatic exterior lamp control
EPA Fuel Economy & Specification
- EPA Fuel Economy Est - City (MPG) : 15
- EPA Fuel Economy Est - Hwy (MPG) : 19
- Front Tire Capacity (lbs) : - TBD -
- Rear Tire Capacity (lbs) : - TBD -
- Spare Tire Capacity (lbs) : - TBD -
- Revolutions/Mile @ 45 mph - Front : - TBD -
- Revolutions/Mile @ 45 mph - Rear : - TBD -
- Revolutions/Mile @ 45 mph - Spare : - TBD -
- Steering Ratio (:1), On Center : - TBD -
- Steering Ratio (:1), At Lock : - TBD -
- Turning Diameter - Wall to Wall (ft) : - TBD -
- Fuel Tank Capacity, Approx (gal) : 34
- Fuel Tank Location : LH
- Cab to End of Frame (in) : - TBD -
- Ground to Top of Frame (in) : - TBD -
- Frame Width, Rear (in) : - TBD -
- Ext'd Cab Cargo Volume (ft³) : - TBD -
