Details
- Condition
Pre-Owned Clear Title - Engine
5.3L 8 Cylinder - Drivetrain
All Wheel Drive - Interior
Medium Dark Pewter vinyl - VIN #
1GNFH15T861123163 - Mileage
295123 - Transmission
Automatic - Exterior Color
Summit White - Stock #
123163 - Warranty

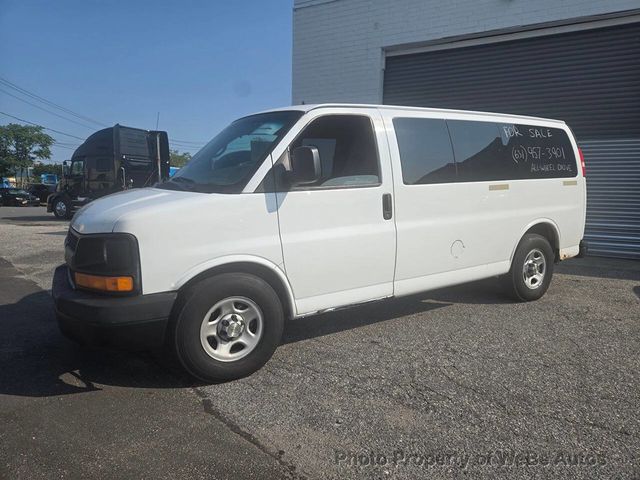

2006 Chevrolet Express LS 1500 Passenger Van, the perfect vehicle for all your transportation needs. With its spacious interior and powerful engine, this van is ideal for both personal and commercial use.
ALL WHEEL DRIVE
Seats 8
295,113 miles. I have used this van for the last 150k miles.
Just did brand new starter, brake calipers front and rear.
Tires are in great condition.
The All Wheel Drive makes this van invaluable in the winter
Luxury Features
- Air Conditioning
Power Equipment
- 12v Power Outlet
- Power Steering
Safety Features
- Driver's Air Bag
- Intermittent Wipers
- Passenger Air Bag
Audio / Video
- Factory System
- AM/FM
Interior & Exterior
- Center Arm Rest
- Clock
- Cup Holders
- Third Seat
Standard Specs
MECHANICAL
- Engine, Vortec 5300 V8 SFI (295 HP [220 kW] @ 5200 rpm, 335 lb.-ft. [452.25 N-m] @ 4000 rpm) (Standard on *H13406 Model. Available on *G13406 Model. Reference the Engine/Axle page for availability.)
- Transmission, 4-speed automatic, electronically controlled with overdrive, tow/haul mode and internal transmission oil cooler (Standard and only available on **13406 Models. Reference the Engine/Axle page for availability.)
- Tow/haul mode selector, IP mounted
- Brake/transmission shift interlock, automatic transmission
- Rear axle, 3.42 ratio (Standard and only available on **13406 Models. Reference the Engine/Axle page for availability.)
- Transfer case, all-wheel drive (Only standard on CH13406.)
- Battery, 600 cold-cranking amps, includes rundown protection and retained accessory power
- Alternator, 105 amps (Not available with (C69) Air conditioning, rear.)
- Frame, ladder-type
- Suspension, front, independent torsion bar (computer selected) and stabilizer bar (Standard and only available on *H13406 Model.)
- Suspension, rear, hypoid drive axle with multi-leaf springs
- GVWR, 7200 lbs. (3266 kg) (Standard and only available on **13406 Models. Reference the Engine/Axle page for availability.)
- Tires, front P245/75R16, all-season, blackwall (Requires **13406 Models. Standard on *H13406 Model. Included on *G13406 Model with (LM7) Engine, Vortec 5300 V8 SFI.)
- Tires, rear P245/75R16, all-season, blackwall (Requires **13406 Models. Standard on *H13406 Model. Included on *G13406 Model with (LM7) Engine, Vortec 5300 V8 SFI.)
- Tire, spare P245/75R16, all-season, blackwall (Requires **13406 Models. Standard on *H13406 Model. Included on *G13406 Model with (LM7) Engine, Vortec 5300 V8 SFI.)
- Wheels, Gray painted, includes Gray center caps and steel spare (Not available on CH13406 model if (E26) Door, swing-out driver side is ordered.)
- Steering, power
- Brakes, 4-wheel antilock, 4-wheel disc
- Fuel capacity, approximate, 31 gallons (117 liters)
- Exhaust, aluminized stainless-steel muffler and tailpipe
- Key, single, 2-sided
- Vehicle Name : Chevrolet Express Passenger
- Body Style : 1500 135" WB
- Body Code : ZW9
- Drivetrain : All Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 3600
- Gross Axle Wt Rating - Rear (lbs) : 4000
- Curb Weight - Front (lbs) : 2989
- Curb Weight - Rear (lbs) : 2446
- Gross Vehicle Weight Rating Cap (lbs) : 7200
- Gross Combined Wt Rating (lbs) : 12000
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs) : 6100
- Wt Distributing Hitch - Max Tongue Wt. (lbs) : 915
- Fifth Wheel Hitch - Max Trailer Wt. (lbs) : N/A
- Fifth Wheel Hitch - Max Tongue Wt. (lbs) : N/A
- Engine Order Code : LM7
- Engine Type : Gas V8
- Displacement : 5.3L/325
- Fuel System : SFI
- SAE Net Horsepower @ RPM : 295 @ 5200
- SAE Net Torque @ RPM : 335 @ 4000
- Trans Order Code : M30
- Trans Type : 4
- Trans Description Cont. : Automatic w/OD
- First Gear Ratio (:1) : 3.05
- Second Gear Ratio (:1) : 1.62
- Third Gear Ratio (:1) : 1.00
- Fourth Gear Ratio (:1) : 0.69
- Reverse Ratio (:1) : 2.29
- Trans Power Take Off : N/A
- Cold Cranking Amps @ 0° F (Primary) : 600
- Maximum Alternator Capacity (amps) : 105
- Engine Oil Cooler : Yes
- Frame Type : Ladder-Type
- Suspension Type - Front : Torsion Bar
- Suspension Type - Rear : Multi-leaf
- Spring Capacity - Front (lbs) : 3600
- Spring Capacity - Rear (lbs) : 4000
- Axle Type - Front : Independent
- Axle Type - Rear : Semi-Floating
- Axle Capacity - Front (lbs) : 3600
- Axle Capacity - Rear (lbs) : 4000
- Axle Ratio (:1) - Rear : 3.42
- Stabilizer Bar Diameter - Front (in) : 1.30
- Steering Type : Pwr
- Steering Ratio (:1), On Center : 17.2
- Turning Diameter - Curb to Curb (ft) : 43.4
- Brake Type : Pwr
- Brake ABS System : 4-Wheel
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 12.0 x 1.14
- Rear Brake Rotor Diam x Thickness (in) : 13 x 1.18
- Rear Door Type : Panel
EXTERIOR
- Paint, solid
- Body, standard
- Bumpers, front, and rear, painted Black, includes step-pad (Not available when ordered with (V37) Bumpers, front and rear, chrome)
- Grille, Black composite, with single rectangular halogen headlamps
- Headlamps, halogen
- Daytime running lamps
- Mirrors, outside rearview, manual folding, Black
- Glass, full body window package
- Glass, Solar-Ray light tinted, all windows
- Glass, side door, swing-out
- Glass, rear cargo door windows, swing-out
- Wipers, intermittent, front wet-arm with pulse washers
- License plate kit, front
- Door, swing-out passenger side, 60/40 split
- Front Tire Order Code : XNK
- Rear Tire Order Code : YNK
- Spare Tire Order Code : ZNK
- Front Tire Size : P245/75R16
- Rear Tire Size : P245/75R16
- Spare Tire Size : P245/75R16
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Spare Wheel Material : Steel
- Wheelbase (in) : 135.0
- Length, Overall w/rear bumper (in) : 224.1
- Width, Max w/o mirrors (in) : 79.4
- Height, Overall (in) : 81.6
- Ground to Top of Load Floor (in) : 25.0
- Ground Clearance, Front (in) : 8.0
- Ground Clearance, Rear (in) : 7.4
- Rear Door Opening Height (in) : 49.4
- Rear Door Opening Width (in) : 57.0
- Side Door Type : Swing-out
- Side Door Opening Height (in) : 47.9
- Step Up Height - Front (in) : 17.9
- Step Up Height - Side (in) : 18.8
- Cargo Area Length @ Floor to Console (in) : 153.6
- Cargo Area Length @ Floor to Seat 1 (in) : 127.8
- Cargo Area Length @ Floor to Seat 2 (in) : 89.4
- Cargo Area Length @ Floor to Seat 3 (in) : 57.4
- Cargo Box Width @ Wheelhousings (in) : 50.5
- Cargo Box (Area) Height (in) : 51.9
- Cargo Volume to Seat 1 (ft³) : 217.3
- Cargo Volume to Seat 3 (ft³) : 204.0
INTERIOR
- Seats, front vinyl reclining buckets, includes head restraints (Requires (**W) interior trim. When ordered with a seating arrangement that includes rear seats, includes rear vinyl bench seats with outboard armrests. Head restraints are not available on rear bench seats.)
- Seating, 8-passenger (2-3-3 seating configuration) (Standard on **13406 model only. Available when ordered with *G23406 or *G33406 models)
- Console, Base, includes open storage bin
- Cupholders, 3, on engine console cover
- Power outlet, auxiliary, 2 covered, on engine console cover, 12-volt
- Floor covering, Black rubberized vinyl full length floor covering
- Steering wheel, steel sleeve column, includes theft-deterrent locking feature, Black
- Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
- Oil life monitor
- Warning tones, headlamp on, key-in-ignition
- Theft-deterrent system, PASSLock
- Air conditioning, front manual
- Defogger, side window
- Sound system, ETR AM/FM stereo, includes seek-and-scan and digital clock. Includes front door speakers (2) and overhead rear sound bar (2)
- Headliner, cloth
- Mirror, inside rearview, manual day/night
- Visors, padded, driver and passenger side
- Assist handle, front passenger
- Lighting, 2 dome lamps, includes defeat switch and door handle-activated switches
- Passenger Capacity : 8
- Total Cooling System Capacity (qts) : 16.8
- Front Head Room (in) : 40.2
- Front Leg Room (in) : 41.3
- Front Shoulder Room (in) : 68.8
- Front Hip Room (in) : 65.5
- Second Head Room (in) : 38.5
- Second Leg Room (in) : 34.8
- Second Shoulder Room (in) : 68.9
- Second Hip Room (in) : 66.0
- Third Head Room (in) : 38.6
- Third Leg Room (in) : 37.6
- Third Shoulder Room (in) : 63.5
- Third Hip Room (in) : 64.4
SAFETY
- Brakes, 4-wheel antilock, 4-wheel disc
- Air bags, frontal, driver and right front passenger (Includes passenger side air bag deactivation switch for Models with (C6P) GVWR, 8600 lbs. (3901 kg) and above. Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owners Manual for more safety information.)
- Child seat anchor, two attachments in the second row seat and one in the center of the third row seat only
- Brake/transmission shift interlock, automatic transmission
- Door beams, steel-side
- Daytime running lamps
EPA Fuel Economy & Specification
- EPA Fuel Economy Est - City (MPG) : 14
- EPA Fuel Economy Est - Hwy (MPG) : 18
- Maximum Alternator Watts : - TBD -
- Shock Absorber Diameter - Front (mm) : - TBD -
- Shock Absorber Diameter - Rear (mm) : - TBD -
- Front Tire Capacity (lbs) : - TBD -
- Rear Tire Capacity (lbs) : - TBD -
- Spare Tire Capacity (lbs) : - TBD -
- Revolutions/Mile @ 45 mph - Front : - TBD -
- Revolutions/Mile @ 45 mph - Rear : - TBD -
- Revolutions/Mile @ 45 mph - Spare : - TBD -
- Front Wheel Size (in) : 16 x - TBD -
- Rear Wheel Size (in) : 16 x - TBD -
- Spare Wheel Size (in) : 16 x - TBD -
- Steering Ratio (:1), At Lock : - TBD -
- Turning Diameter - Wall to Wall (ft) : - TBD -
- Fuel Tank Capacity, Approx (gal) : 31
- Fuel Tank Location : Mid Inboard Rail
- Overhang, Front (in) : - TBD -
- Overhang, Rear w/bumper (in) : - TBD -
- Cargo Area Width @ Beltline (in) : - TBD -
- Cargo Volume to Seat 2 (ft³) : - TBD -
