Features

Luxury Features

Air Conditioning
Climate Control
Cruise Control
Front Heated Seats
Heated Mirrors
Memory Seat Position
Rear A/C
Rear Heated Seats
Rear Radio Control
Tinted Windows

Power Equipment

12v Power Outlet
Power Adjustable Pedals
Power Driver's Seat
Power Mirrors
Power Passenger Seat
Power Steering
Power Windows

Safety Features

Driver's Air Bag
Dynamic Stability Contol
Fog Lights
Intermittent Wipers
Keyless Entry
Passenger Air Bag
Rear Defogger
Roll Stability Control
Security System
Traction Control System

Audio / Video

Factory System
AM/FM
Cassette
CD Changer
Premium Sound
Satellite Radio

Interior & Exterior

Carpeted Floor Mats
Clock
Compass And Temperature Display
Tachometer
Third Seat
Vanity Mirrors
Rear Wipers
Running Boards
Tow Hooks

Condition Report

No Known Accidents
No Known Bodywork

Standard Specs

MECHANICAL

Engine, Vortec 6000 V8 SFI (320 HP [238.7 kW] @ 5000 rpm, 365 lb.-ft. [486.6 N-m] @ 4000 rpm)
Air cleaner, high-capacity
Transmission, 4-speed automatic, heavy-duty, electronically controlled w/overdrive & tow/haul mode
Transfer case, AWD, electronic automatic system
StabiliTrak, vehicle stability enhancement system-inc: threshold switch
All-wheel drive
Alternator, 145 amps
Cooling, external engine oil cooler, heavy-duty air-to-oil, integral to driver side of radiator
Cooling, external transmission oil cooler, auxiliary, heavy-duty air-to-oil
Recovery hooks, 2 front, frame-mounted
Trailering wiring harness, 7-wire
GVWR, 7200 lbs. (3266 kg)
Suspension Package, Autoride, bi-state variable shock dampening & rear air- assisted load-leveling
Suspension, front, independent torsion bar, & stabilizer bar
Suspension, rear, multi-link w/coil springs
Tires, P265/70R17, all-season, blackwall
Tire carrier, outside spare, winch-type mounted under frame at rear, w/matching tire
Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) cast aluminum, polished-inc: steel spare
Steering, power
Brakes, 4-wheel antilock, 4-wheel disc
Fuel capacity, approximate, gallon (liters) 31 (123)
Exhaust, aluminized stainless-steel muffler & tailpipe
Tools, mechanical jack & wheel wrench, gloves & courtesy mat, stored in rear quarter trim
Vehicle Name : GMC Yukon XL Denali
Body Style : 4 Door 1500
Body Code : E52
Drivetrain : All Wheel Drive
Gross Axle Wt Rating - Front (lbs) : 3600
Gross Axle Wt Rating - Rear (lbs) : 4000
Curb Weight - Front (lbs) : 2811
Curb Weight - Rear (lbs) : 2289
Gross Vehicle Weight Rating Cap (lbs) : 7200
Gross Combined Wt Rating (lbs) : 14,000
Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
Wt Distributing Hitch - Max Trailer Wt. (lbs) : 8000
Wt Distributing Hitch - Max Tongue Wt. (lbs) : 1000
Engine Order Code : LQ4
Engine Type : Gas V8
Displacement : 6.0L/364
Fuel System : SFI
SAE Net Horsepower @ RPM : 316 @ 5200
SAE Net Torque @ RPM : 365 @ 4000
Trans Order Code : M32
Trans Type : 4
Trans Description Cont. : Automatic w/OD
First Gear Ratio (:1) : 3.06
Second Gear Ratio (:1) : 1.63
Third Gear Ratio (:1) : 1.00
Fourth Gear Ratio (:1) : 0.70
Reverse Ratio (:1) : 2.29
Transfer Case Model : New Venture Gear 149
Cold Cranking Amps @ 0° F (Primary) : 600
Maximum Alternator Capacity (amps) : 145
Engine Oil Cooler : Yes
Frame Type : Ladder
Suspension Type - Front : Torsion Bar
Suspension Type - Rear : 5-Link Coil
Spring Capacity - Front (lbs) : 3600
Spring Capacity - Rear (lbs) : 4000
Axle Type - Front : Independent
Axle Type - Rear : Semi-Floating
Axle Capacity - Front (lbs) : 3925
Axle Capacity - Rear (lbs) : 4000
Axle Ratio (:1) - Front : 3.73
Axle Ratio (:1) - Rear : 3.73
Shock Absorber Diameter - Front (mm) : 46
Shock Absorber Diameter - Rear (mm) : 46
Stabilizer Bar Diameter - Front (in) : 1.26
Steering Type : Speed-Sensitive Pwr Recirculating Ball
Steering Ratio (:1), On Center : 16.0
Turning Diameter - Curb to Curb (ft) : 42.3
Turning Diameter - Wall to Wall (ft) : 46.0
Brake Type : Pwr
Brake ABS System : 4-Wheel
Disc - Front (Yes or ) : Yes
Disc - Rear (Yes or ) : Yes
Front Brake Rotor Diam x Thickness (in) : 12.0 x 1.1
Rear Brake Rotor Diam x Thickness (in) : 12.9 x 1.2
Rear Door Type : Liftgate

EXTERIOR

Luggage rack, roof-mounted, Black
Bumper, front, body-color
Bumper, rear, body-color step-inc: pad
Trailering equipment, heavy-duty-inc: trailering hitch platform, 7-wire harness w/independent fused trailering circuits & 7-way sealed connector
Grille, chrome surround
Assist steps, color-keyed, w/Black insert, mounted between front & rear wheels at bottom of rocker
Headlamps, projector beam-inc: flash-to-pass feature & automatic lamp control
Fog lamps, front, round, halogen
Mirrors, outside rearview, power folding, power adjustable, heated, color- keyed, driver side electrochromic (light-sensitive auto dimming), turn signal in glass, w/ground illumination & curb-tilt
Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver & front passenger)
Wipers, intermittent, front wet-arm w/pulse washers
Body, liftgate w/liftglass, rear door system-inc: rear-window wiper/ washer
Front Tire Order Code : QAN
Rear Tire Order Code : QAN
Front Tire Size : P265/70R17
Rear Tire Size : P265/70R17
Spare Tire Size : P265/70R17
Front Wheel Size (in) : 17 x 7.5
Rear Wheel Size (in) : 17 x 7.5
Front Wheel Material : Aluminum
Rear Wheel Material : Aluminum
Spare Wheel Material : Steel
Wheelbase (in) : 130.0
Length, Overall w/rear bumper (in) : 219.3
Width, Max w/o mirrors (in) : 78.8
Height, Overall (in) : 75.7
Overhang, Front (in) : 36.9
Overhang, Rear w/bumper (in) : 52.4
Ground to Top of Load Floor (in) : 31.1
Ground Clearance, Front (in) : 9.8
Ground Clearance, Rear (in) : 8.4
Step Up Height - Front (in) : 22.0
Step Up Height - Side (in) : 22.0
Cargo Area Length @ Floor to Seat 1 (in) : 104.6
Cargo Area Length @ Floor to Seat 2 (in) : 69.6
Cargo Area Length @ Floor to Seat 3 (in) : 36.1
Cargo Box Width @ Wheelhousings (in) : 49.2
Cargo Box (Area) Height (in) : 40.5
Cargo Volume to Seat 1 (ft³) : 131.6
Cargo Volume to Seat 2 (ft³) : 90.0
Cargo Volume to Seat 3 (ft³) : 45.7

INTERIOR

Seats, front tone-on-tone leather seating surfaces power reclining full- feature buckets-inc: articulating head restraints, floor console, power lumbar, driver & passenger 10-way power adjustable, inboard armrests, heated driver & passenger cushion & seatbacks, power bolsters, 2-position driver- side memory & rear storage pockets
Seats, middle tone-on-tone leather seating surfaces 60/40 split-folding bench, 3-passenger w/outboard heated cushions, center armrest w/storage tray (rear passenger easy entry on Yukon XL Denali only)
Steering column, Tilt-Wheel, adjustable-inc: brake/transmission shift interlock
Steering wheel-inc: redundant audio & Driver Information Center controls, leather-wrapped, trim color
Driver Information Center, monitors up to 31 different systems depending on vehicle equipment Instrumentation, analog-inc: speedometer, odometer w/trip odometer, fuel level, voltmeter, engine temperature, oil pressure, tachometer & transmission temperature
Warning tones, headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on
Windows, power-inc: driver express-down & lockout features
Door locks, power programmable-inc: lockout protection
Pedals, power adjustable
Cruise control, electronic w/set & resume speed-inc: telltale in instrument panel cluster
Keyless entry, remote-inc: 2 transmitters, panic button & content theft alarm
Air conditioning, tri-zone, automatic, individual climate settings for driver, right front passenger & rear passengers-inc: front & rear HVAC systems
Heater & defogger-inc: front & side window defoggers, rear passenger heating ducts & heater, rear auxiliary
Defogger, rear-window, electric
Sound system feature, satellite XM digital sound system, 100 channels of digital quality sound that goes wherever you go - coast to coast. GM maintains exclusivity for factory installed satellite radio for 2003 model year (Subscription fees apply) *Available only in the contiguous 48 U.S.*
Sound system feature, rear audio controls-inc: dual headphone jacks (headphones not included), power outlet & controls for volume, station selection & media
Security Plus Package-inc: (UE1) OnStar, (UG1) Universal transmitter & Side-impact air bags, driver & right front passenger
Power outlets, auxiliary, covered, 3 in floor console, 1 in cargo area, 12-volt
Door trim, lights on front doors, side reflectors on rear doors
Armrests, driver & passenger doors, padded
Mirror, inside rearview, electrochromic (light-sensitive auto-dimming), 8-point compass, outside temperature indicator & right front passenger air bag status
Console, overhead mini-inc: map lights & rear seat HVAC controls
Visors, padded, Shale-colored, driver & passenger side w/cloth trim, extenders, illuminated vanity mirrors & corner storage pockets on back of visors
Assist handles, front passenger & outboard 2nd row seats
Coat hooks, driver & passenger side, rear seat & cargo area
Lighting, dome lamp, driver & passenger side door switch w/delayed entry feature, theater dimming, cargo lamps, door handle or keyless remote activated illuminated entry w/ground illumination, map lights in front & 2nd 2nd seat positions
Storage bin, behind rear driver side quarter panel
Cargo Package-inc: cargo shade, cargo net, cargo mat & luggage rack center rails
Passenger Capacity : 8
Total Cooling System Capacity (qts) : 15.4
Front Head Room (in) : 40.7
Front Leg Room (in) : 41.3
Front Shoulder Room (in) : 65.2
Front Hip Room (in) : 61.4
Second Head Room (in) : 39.0
Second Leg Room (in) : 39.1
Second Shoulder Room (in) : 65.1
Second Hip Room (in) : 61.6
Third Head Room (in) : 38.6
Third Leg Room (in) : 36.1
Third Shoulder Room (in) : 64.8
Third Hip Room (in) : 49.2

SAFETY

Brakes, 4-wheel antilock, 4-wheel disc
Air bags, frontal, driver & right front passenger-inc: Passenger Sensing System
Security Plus Package-inc: (UE1) OnStar, (UG1) Universal transmitter & Side-impact air bags, driver & right front passenger

EPA Fuel Economy & Specification

EPA Fuel Economy Est - City (MPG) : 12
EPA Fuel Economy Est - Hwy (MPG) : 16
Maximum Alternator Watts : - TBD -
Spare Tire Order Code : - TBD -
Front Tire Capacity (lbs) : - TBD -
Rear Tire Capacity (lbs) : - TBD -
Spare Tire Capacity (lbs) : - TBD -
Revolutions/Mile @ 45 mph - Front : - TBD -
Revolutions/Mile @ 45 mph - Rear : - TBD -
Revolutions/Mile @ 45 mph - Spare : - TBD -
Spare Wheel Size (in) : - TBD -
Fuel Tank Capacity, Approx (gal) : 31
Fuel Tank Location : Inboard LH Frame Rail
Rear Door Opening Height (in) : - TBD -
Rear Door Opening Width (in) : - TBD -
Cargo Area Width @ Beltline (in) : - TBD -

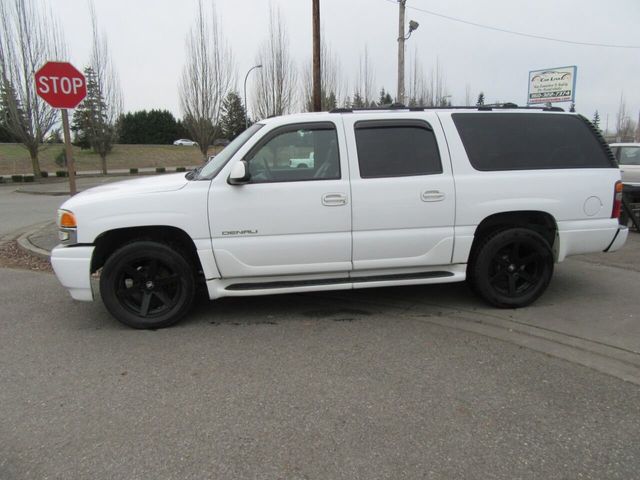

2003 GMC Yukon XL Denali

$6,999
