Details
- Condition
Pre-Owned Rebuilt, Rebuildable & Reconstructed Title - Engine
4.3L V6 CYLINDER - Drivetrain
Rear Wheel Drive - Interior
Graphite - VIN #
1GCCS1447YK184332 - Mileage
86781 - Transmission
Manual - Exterior Color
Victory Red - Stock #
3643 - Warranty
As-Is
Power Equipment
- Power Steering
Safety Features
- Driver's Air Bag
- Intermittent Wipers
- Passenger Air Bag
Audio / Video
- AM/FM
Interior & Exterior
- Clock
- Cloth Seats
- Cup Holders
Standard Specs
MECHANICAL
- 2.2L (134) SFI gas/ethanol flex-fuel L4 (Vortec) engine
- 5-speed manual transmission w/OD
- HD 525 CCA battery w/rundown protection
- 100 amp alternator
- Rear wheel drive
- Welded double-wall construction in box sides/tailgate w/steel floor
- (4) Load tie-down anchors
- 4200# GVWR (2500 front/2300 rear), springs (2500 front/2300 rear), axles (2500 front/2900 rear)
- Independent front suspension w/coil springs
- Multi-leaf spring rear suspension
- Semi-floating rear axle
- Front stabilizer bar
- P205/75R15 all-season SBR BSW tires
- 15" x 7" argent steel wheels w/black center caps
- T155/90D16 compact spare tire w/16" x 4" steel wheel
- Spare tire carrier mounted under bed
- Pwr steering
- Pwr front disc/rear drum brakes
- 4-wheel anti-lock brake system
- 19 gallon fuel tank
- Stainless steel exhaust system
- Tools-inc: jack w/cover & wheel wrench

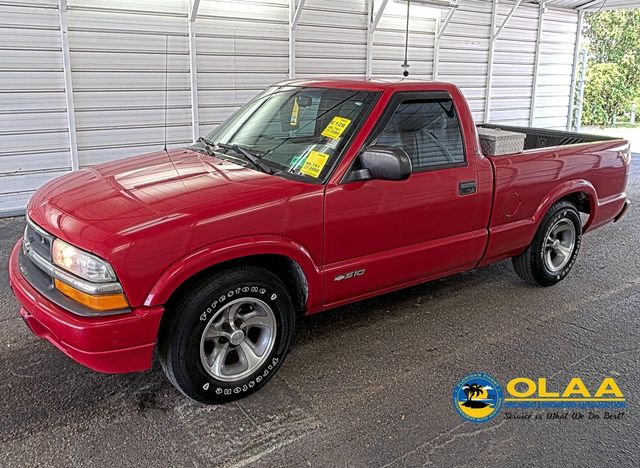

- Vehicle Name : Chevrolet S-10
- Body Style : Reg Cab 6' Fleetside LS
- Body Code : E63
- Drivetrain : Rear Wheel Drive
- Gross Axle Wt Rating - Front (lbs) : 2500
- Gross Axle Wt Rating - Rear (lbs) : 2300
- Curb Weight - Front (lbs) : 1722
- Curb Weight - Rear (lbs) : 1318
- Gross Vehicle Weight Rating Cap (lbs) : 4200
- Gross Combined Wt Rating (lbs) : 5000
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 2000
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 350
- Wt Distributing Hitch - Max Trailer Wt. (lbs) : 2000
- Wt Distributing Hitch - Max Tongue Wt. (lbs) : 640
- Fifth Wheel Hitch - Max Trailer Wt. (lbs) : 2000
- Engine Order Code : L43
- Engine Type : Gas/Ethanol L4
- Displacement : 2.2L/134
- Fuel System : SFI
- SAE Net Horsepower @ RPM : 120 @ 5000
- SAE Net Torque @ RPM : 140 @ 3600
- Trans Order Code : MW2
- Trans Type : 5
- Trans Description Cont. : Manual w/OD
- First Gear Ratio (:1) : 3.94
- Second Gear Ratio (:1) : 2.37
- Third Gear Ratio (:1) : 1.49
- Fourth Gear Ratio (:1) : 1.00
- Fifth Gear Ratio (:1) : 0.83
- Reverse Ratio (:1) : 3.65
- Clutch Size (in) : 9.13
- Cold Cranking Amps @ 0° F (Primary) : 525
- Maximum Alternator Capacity (amps) : 100
- Maximum Alternator Watts : 1200
- Frame Type : Ladder
- Suspension Type - Front : Coil Spring
- Suspension Type - Rear : 2-Stage Multi-Leaf
- Spring Capacity - Front (lbs) : 2500
- Spring Capacity - Rear (lbs) : 2300
- Axle Type - Rear : Semi-Floating
- Axle Capacity - Front (lbs) : 2500
- Axle Capacity - Rear (lbs) : 2900
- Axle Ratio (:1) - Rear : 3.73
- Shock Absorber Diameter - Front (mm) : 32
- Shock Absorber Diameter - Rear (mm) : 32
- Stabilizer Bar Diameter - Front (in) : 0.98
- Steering Type : Power
- Steering Ratio (:1), On Center : 15
- Steering Ratio (:1), At Lock : 13
- Turning Diameter - Curb to Curb (ft) : 36.9
- Turning Diameter - Wall to Wall (ft) : 38.9
- Brake Type : Power
- Brake ABS System : 4-Wheel
- Disc - Front (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 10.5 x 1.03
- Drum - Rear (Yes or ) : Yes
- Rear Drum Diam x Width (in) : 9.5 x 2.0
EXTERIOR
- Body-color front/rear-step bumpers
- Body-color air dam
- Chrome & gray grille
- Halogen composite headlamps
- Daytime running lamps w/auto headlamp control
- Dual black below-eye-line mirrors
- Solar-Ray tinted glass
- Adjustable intermittent windshield wipers
- "LS" badge on "B" pillar
- Insulation-inc: dash panels, doors, cab back, floor, hood, instrument panel, cowl/fender seal
- Front Tire Order Code : QCE
- Rear Tire Order Code : QCE
- Front Tire Size : P205/75R15
- Rear Tire Size : P205/75R15
- Spare Tire Size : T155/90D16
- Front Tire Capacity (lbs) : 1452
- Rear Tire Capacity (lbs) : 1452
- Spare Tire Capacity (lbs) : 1453
- Revolutions/Mile @ 45 mph - Front : 768
- Revolutions/Mile @ 45 mph - Rear : 768
- Revolutions/Mile @ 45 mph - Spare : 788
- Front Wheel Size (in) : 15 x 7
- Rear Wheel Size (in) : 15 x 7
- Spare Wheel Size (in) : 16 x 4
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Spare Wheel Material : Steel
- Wheelbase (in) : 108.3
- Length, Overall w/o rear bumper (in) : 190.1
- Width, Max w/o mirrors (in) : 67.9
- Height, Overall (in) : 62.0
- Overhang, Front (in) : 34.6
- Overhang, Rear w/o bumper (in) : 47.2
- Front Bumper to Back of Cab (in) : 105.5
- Cab to Axle (in) : 37.4
- Cab to End of Frame (in) : 72.8
- Ground to Top of Load Floor (in) : 25.9
- Ground Clearance, Front (in) : 9.1
- Ground Clearance, Rear (in) : 7.2
- Cargo Box Length @ Floor (in) : 72.8
- Cargo Box Width @ Top, Rear (in) : 54.9
- Cargo Box Width @ Floor (in) : 54.9
- Cargo Box Width @ Wheelhousings (in) : 40.3
- Cargo Box (Area) Height (in) : 17.1
- Tailgate Width (in) : 54.9
- Cargo Volume (ft³) : 39.4
INTERIOR
- Deluxe cloth 60/40 reclining split bench seat w/folding back, armrest w/ integral storage, dual cup holders, driver side manual lumbar adjuster
- Full-floor color-keyed carpeting
- Deluxe black 4-spoke steering wheel
- Passlock theft deterrent security system
- Instruments-inc: speedometer, odometer, trip odometer, fuel/voltmeter/temp/ oil pressure gauges
- Headlamp-on/turn-signal reminder warning buzzers
- Retained accessory power
- Heater/defogger w/side window defoggers
- ETR AM/FM stereo-inc: seek-scan, digital clock, 4 speakers
- Glove box w/door-operated light
- Instrument panel cigarette lighter w/ashtray light
- Dual covered pwr points
- Day/night rearview mirror
- Molded door trim panels w/dual map pockets, soft cloth upper insert
- Dual padded armrests integral w/door panels
- Full-coverage, foam-backed, color-keyed cloth headliner
- Dual padded color-keyed cloth sunshades w/LH map strap, RH vanity mirror
- Passenger assist handle
- Lights-inc: door-operated dome & front floor courtesy w/delayed entry
- Back panel carpeting
- Dual coat hooks
- Passenger Capacity : 3
- Total Cooling System Capacity (qts) : 11.5
- Front Head Room (in) : 39.5
- Front Leg Room (in) : 42.4
- Front Shoulder Room (in) : 56.9
- Front Hip Room (in) : 53.6
SAFETY
- 4-wheel anti-lock brake system
- Driver & front passenger airbags w/passenger suppression switch on instrument panel
- Color-keyed manual lap/shoulder safety belts, outboard seat positions
- Color-keyed manual lap safety belt, center seat position
- Daytime running lamps w/auto headlamp control
- Side door guard beams
- Dual note horn
EPA Fuel Economy & Specification
- EPA Fuel Economy Est - City (MPG) : 23
- EPA Fuel Economy Est - Hwy (MPG) : 29
- Fuel Tank Capacity, Approx (gal) : 19
- Fuel Tank Location : Inboard LH Frame
- Frame Width, Rear (in) : - TBD -
