Details
- Condition
Brand-New - Engine
6.7L Straight 6 Cylinder - Drivetrain
Four Wheel Drive - Interior
Black - VIN #
3C7WRTCL8TG193394 - Mileage
0 - Transmission
Automatic - Exterior Color
Ceramic Gray Clearcoat - Stock #
226061 - Warranty
Full-Factory
Key Packages & Features
- Security System
- Keyless Entry

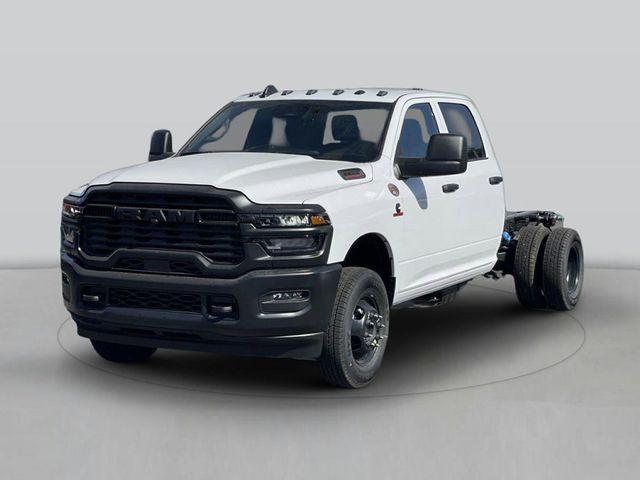

Ceramic Gray Clearcoat 2026 Ram 3500 Tradesman 4WD 8-Speed Automatic Cummins 6.7L I6 Turbodiesel
Luxury Features
- Air Conditioning
- Cruise Control
- Tilt Steering Wheel
- Tinted Windows
Power Equipment
- Power Driver's Seat
- Power Mirrors
- Power Steering
- Power Windows
Safety Features
- Anti-Lock Brakes
- Child Proof Door Locks
- Daytime Running Lights
- Driver's Air Bag
- Dynamic Stability Contol
- Fog Lights
- Intermittent Wipers
- Keyless Entry
- Passenger Air Bag
- Rear Defogger
- Roll Stability Control
- Security System
- Traction Control System
Audio / Video
- Factory System
- AM/FM
- HD Radio
Interior & Exterior
- Center Arm Rest
- Clock
- Cloth Seats
- Compass And Temperature Display
- Overhead Console
- Tachometer
- Vanity Mirrors
- Tow Hooks
Standard Specs
MECHANICAL
- Engine: 6.4L V8 HEMI HD
- Transmission: 8-Speed Auto 8HP75-LCV Does not have PTO capability.
- 4.10 axle ratio
- GVWR: 11,040 lbs
- 50 state emissions
- Transmission w/Driver Selectable Mode and Oil Cooler
- Electronic Transfer Case
- Part-Time Four-Wheel Drive
- 730CCA Maintenance-Free Battery w/Run Down Protection
- 220 Amp Alternator
- Towing Equipment -inc: Trailer Sway Control
- Trailer Wiring Harness
- 4330# Maximum Payload
- HD gas-pressurized shock absorbers
- Front Anti-Roll Bar and Rear HD Anti-Roll Bar
- Hydraulic Power-Assist Steering
- 52 Gal. Fuel Tank
- Single stainless steel exhaust
- Auto Locking Hubs
- Multi-Link Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Leaf Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs
- Upfitter Switches
- Mechanical Limited Slip Differential
- Vehicle Name : Ram 3500 Chassis Cab
- Body Style : Crew Cab
- Body Code : H
- Drivetrain : Four Wheel Drive
- Base Curb Weight (lbs) : 6709
- Gross Axle Wt Rating - Front (lbs) : 5500
- Gross Axle Wt Rating - Rear (lbs) : 6800
- Curb Weight - Front (lbs) : 3981
- Curb Weight - Rear (lbs) : 2728
- Gross Vehicle Weight Rating Cap (lbs) : 11040
- Gross Combined Wt Rating (lbs) : 22000
- Dead Weight Hitch - Max Trailer Wt. (lbs) : 5000
- Dead Weight Hitch - Max Tongue Wt. (lbs) : 500
- Wt Distributing Hitch - Max Trailer Wt. (lbs) : 15140
- Wt Distributing Hitch - Max Tongue Wt. (lbs) : 1514
- Maximum Trailering Capacity (lbs) : 15140
- Engine Order Code : ESL
- Engine Type : Regular Unleaded V-8
- Displacement : 6.4 L/392
- Fuel System : Sequential MPI
- SAE Net Horsepower @ RPM : 375 @ 5600
- SAE Net Torque @ RPM : 429 @ 4000
- Trans Order Code : DFX
- Trans Type : 8
- Trans Description Cont. : Automatic w/OD
- First Gear Ratio (:1) : 4.71
- Second Gear Ratio (:1) : 3.14
- Third Gear Ratio (:1) : 2.11
- Fourth Gear Ratio (:1) : 1.67
- Fifth Gear Ratio (:1) : 1.28
- Sixth Gear Ratio (:1) : 1.00
- Reverse Ratio (:1) : 3.29
- Trans PTO Access : No
- Transfer Case Model : Electronic
- Transfer Case Power Take Off : No
- Cold Cranking Amps @ 0° F (Primary) : 730
- Cold Cranking Amps @ 0° F (2nd) : 730
- Maximum Alternator Capacity (amps) : 220
- Engine Oil Cooler : None
- Suspension Type - Front : Multi-Link
- Suspension Type - Rear : Leaf
- Spring Capacity - Front (lbs) : 5500
- Spring Capacity - Rear (lbs) : 6800
- Axle Type - Front : Non-Independent
- Axle Type - Rear : Rigid Axle
- Axle Capacity - Front (lbs) : 5500
- Axle Capacity - Rear (lbs) : 6800
- Axle Ratio (:1) - Front : 4.10
- Axle Ratio (:1) - Rear : 4.10
- Steering Type : Re-Circulating Ball
- Turning Diameter - Curb to Curb (ft) : 54.4
- Brake Type : 4-wheel disc
- Brake ABS System : 4-Wheel
- Brake ABS System (Second Line) : 4-Wheel
- Disc - Front (Yes or ) : Yes
- Disc - Rear (Yes or ) : Yes
- Front Brake Rotor Diam x Thickness (in) : 14.2
- Rear Brake Rotor Diam x Thickness (in) : 14.1
- Seventh Gear Ratio (:1) : 0.84
- Eighth Gear Ratio (:1) : 0.67
EXTERIOR
- Wheels: 18" x 8.0" Steel Painted
- Tires: LT275/70R18E BSW On/Off Road
- Black Wheel Center Hub
- Black Front Bumper w/2 Tow Hooks
- Black Side Windows Trim And Black Front Windshield Trim
- Black door handles
- Manual Side Mirrors w/Convex Spotter
- Black exterior mirrors
- Manual Telescoping Mirrors
- Manual Folding Exterior Mirrors
- Fixed rear window
- Light tinted glass
- Variable intermittent wipers
- Galvanized Steel/Aluminum Panels
- Black grille
- Auto On/Off Reflector Led Low/High Beam Daytime Running Headlamps w/Delay-Off
- Front fog lamps
- Cab Clearance Lights
- Front Tire Order Code : TCM
- Rear Tire Order Code : TCM
- Front Tire Size : LT275/70SR18
- Rear Tire Size : LT275/70SR18
- Front Tire Capacity (lbs) : 7280
- Rear Tire Capacity (lbs) : 7280
- Revolutions/Mile @ 45 mph - Front : 614
- Revolutions/Mile @ 45 mph - Rear : 614
- Front Wheel Size (in) : 18 x 8
- Rear Wheel Size (in) : 18 x 8
- Front Wheel Material : Steel
- Rear Wheel Material : Steel
- Wheelbase (in) : 172.4
- Length, Overall (in) : 264.2
- Width, Max w/o mirrors (in) : 79.1
- Height, Overall (in) : 80.6
- Overhang, Front (in) : 40.8
- Overhang, Rear w/o bumper (in) : 51.2
- Cab to Axle (in) : 60
- Cab to End of Frame (in) : 112.1
- Ground Clearance, Front (in) : 8.7
- Ground Clearance, Rear (in) : 8.7
ENTERTAINMENT
- Radio: Uconnect 5 w/8.4" Display
- Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Aux Audio Input Jack, Voice Activation, Radio Data System and External Memory Control
- Streaming Audio
- Integrated roof antenna
- 6 Speakers
- GPS antenna input
- Apple CarPlay
- 2 LCD Monitors In The Front
INTERIOR
- 40-20-40 Bench Folding Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
- Driver Seat
- Manual Adjust 4-Way Driver Seat
- 40-20-40 Bench Folding Passenger Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
- Passenger Seat
- Manual Adjust 4-Way Front Passenger Seat
- Bench Front Facing Fold-Up Cushion Vinyl Rear Seat
- Manual tilt steering column
- Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Tachometer, Oil Temperature, Engine Hour Meter and Trip Odometer
- Power Rear Windows
- Voice Recorder
- Rear folding seat
- Illuminated Front Cupholder
- Rear cupholder
- Proximity Key For Push Button Start Only
- Valet Function
- Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
- Cruise control w/steering wheel controls
- Adaptive cruise control
- Manual air conditioning
- HVAC -inc: Underseat Ducts
- Glove box
- Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents
- Full cloth headliner
- Urethane Gear Shifter Material
- HD vinyl 40/20/40 split bench seat
- Day-night rearview mirror
- Passenger visor vanity mirror
- Mini Overhead Console and 2 12V DC Power Outlets
- Front map lights
- Fade-to-off interior lighting
- Full Vinyl/Rubber Floor Covering
- Storage tray
- RAM Connect Tracker System
- Smart Device Integration
- Global Telematics Box Module (TBM)
- Remote USB Port - Charge Only
- 4G LTE Wi-Fi Hot Spot
- Integrated Voice Command w/Bluetooth
- Google Android Auto
- Connectivity - US/Canada
- For Details, Visit DriveUconnect.com
- Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
- Delayed Accessory Power
- Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
- Power Door Locks w/Autolock Feature
- Driver information center
- Redundant digital speedometer
- Analog Appearance
- Temperature & compass gauge
- Seats w/Vinyl Back Material
- Manual Adjustable Front Head Restraints
- 40/20/40 split bench seat
- Front armrest w/cupholders
- 2 Way Rear Headrest Seat
- Sentry Key Immobilizer
- 2 12V DC Power Outlets
- Air filtration
- Passenger Capacity : 6
- Front Head Room (in) : 40.9
- Front Leg Room (in) : 40.9
- Front Shoulder Room (in) : 65.9
- Front Hip Room (in) : 62.9
- Second Head Room (in) : 39.8
- Second Leg Room (in) : 40.2
- Second Shoulder Room (in) : 65.6
- Second Hip Room (in) : 62.7
SAFETY
- Electronic stability control (ESC)
- ABS And Driveline Traction Control
- Side Impact Beams
- RAM Connect Emergency Sos Capability
- Forward Collision Warning-Plus
- Collision Mitigation-Front
- Dual Stage Driver And Passenger Front Airbags
- Airbag Occupancy Sensor
- Rear child safety locks
- Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
EPA Fuel Economy & Specification
- Fuel Tank Capacity, Approx (gal) : 52
