Details

• Condition
  Brand-New
• Engine

• Drivetrain
  Not Specified
• Interior

• VIN #
  9850
• Mileage
  0
• Transmission
  Automatic
• Exterior Color
  White
• Stock #
  9850-IN BUILD
• Warranty

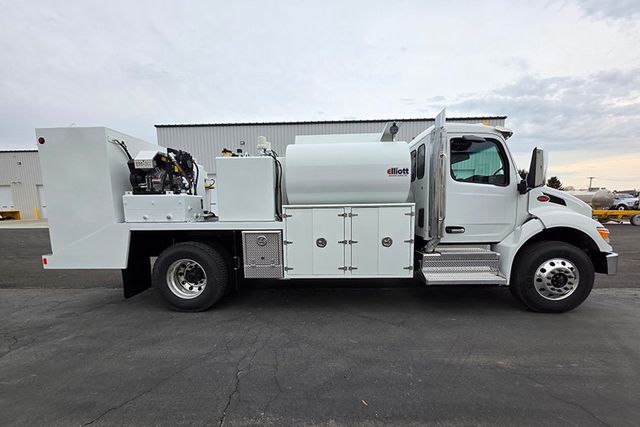

Elliott Platform Body (168) inches long (96) inches wide (0.1644) inch steel floor with oil resistant non-slip flooring Full width, formed steel crossmembers on (12-16) inch centers Full length, (8) inch x (3) inch rectangular steel tubing Gussets located at each crossmember and long sill contact point Side rails full length (4) inch x (2) inch rectangular steel tubing Reel Cabinet - Hose Reel & Equipment Enclosure Formed steel construction with integral drip ledge Reel mounting; Heavy duty, multi-level, with sloped bottom drip tray, and drain plug Rear access; Aluminum, shutter eye, overhead roll-up door with counterbalance spring Interior lighting; (12) VDC LED strip lights installed in hose reel area Fuel Tank - Modified Elliptical Design Large radii shell with dished and flanged heads Tank is built to DOT-406 specifications, but not certified (1000) U.S. gallons, single compartment (0.1644) inch high strength low alloy tank heads (0.1644) inch high strength low alloy baffle(s) (0.1644) inch high strength low alloy bulk heads (0.1644) inch high strength low alloy tank shell Product Tanks (1) each, (120) U.S. gallon used oil tank (4) each, (60) U.S. gallon oil tanks (1) each, (55) U.S. gallon "A/F" tank - poly construction (1) each, (55) U.S. gallon "DEF" tank - poly construction (1) each, drum nest and hold down kit for a (120) lb. commercial drum Large radius formed corners to reduce stress concentrations. Tank corners are "double wall" construction Material; High strength low alloy formed steel for petroleum products. Poly construction with steel frame for anti-freeze Mounting; Structural angles Interior cross baffle Fill port; (4.00) inch nominal diameter, non-vented, lockable fill lid Vent; (10) micron atmospheric vent on oil tanks (3) liquid level sight eyes each tank. (None in fuel or poly tanks) 2026 Peterbilt 537 Engine: Paccar PX-9 Trans: Allison 3500...
